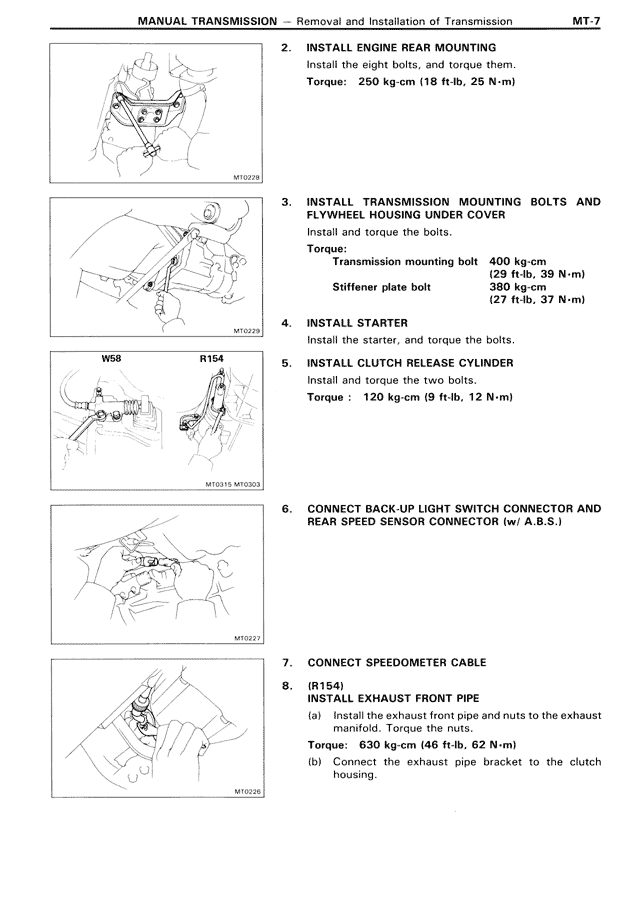

MANUAL TRANSMISSION — Removal and Installation of Transmission — MK3 Supra Manual Transmission, page 7
100%
2. INSTALL ENGINE REAR MOUNTING Install the eight bolts, and torque them. Torque: 250 kg·cm (18 ft·lb, 25 N·m) 3. INSTALL TRANSMISSION MOUNTING BOLTS AND FLYWHEEL HOUSING UNDER COVER Install and torque the bolts. Torque: Transmission mounting bolt 400 kg·cm (29 ft·lb, 39 N·m) Stiffener plate bolt 380 kg·cm (27 ft·lb, 37 N·m) 4. INSTALL STARTER Install the starter, and torque the bolts. 5. INSTALL CLUTCH RELEASE CYLINDER Install and torque the two bolts. Torque: 120 kg·cm (9 ft·lb, 12 N·m) 6. CONNECT BACK-UP LIGHT SWITCH CONNECTOR AND REAR SPEED SENSOR CONNECTOR (w/ A.B.S.) 7. CONNECT SPEEDOMETER CABLE 8. (R154) INSTALL EXHAUST FRONT PIPE (a) Install the exhaust front pipe and nuts to the exhaust manifold. Torque the nuts. Torque: 630 kg·cm (46 ft·lb, 62 N·m) (b) Connect the exhaust pipe bracket to the clutch housing.
