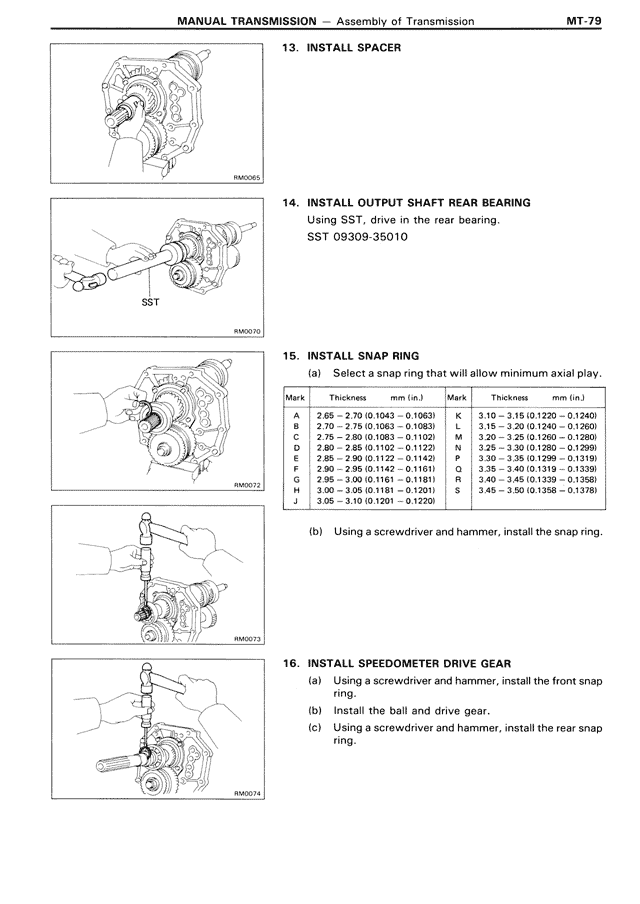

13. INSTALL SPACER
14. INSTALL OUTPUT SHAFT REAR BEARING
Using SST, drive in the rear bearing.
SST 09309-35010
15. INSTALL SNAP RING
(a) Select a snap ring that will allow minimum axial play.
Mark Thickness mm (in.) Mark Thickness mm (in.)
A 2.65 - 2.70 (0.1043 - 0.1063) K 3.10 - 3.15 (0.1220 - 0.1240)
B 2.70 - 2.75 (0.1063 - 0.1083) L 3.15 - 3.20 (0.1240 - 0.1260)
C 2.75 - 2.80 (0.1083 - 0.1102) M 3.20 - 3.25 (0.1260 - 0.1280)
D 2.80 - 2.85 (0.1102 - 0.1122) N 3.25 - 3.30 (0.1280 - 0.1299)
E 2.85 - 2.90 (0.1122 - 0.1142) P 3.30 - 3.35 (0.1299 - 0.1319)
F 2.90 - 2.95 (0.1142 - 0.1161) Q 3.35 - 3.40 (0.1319 - 0.1339)
G 2.95 - 3.00 (0.1161 - 0.1181) R 3.40 - 3.45 (0.1339 - 0.1358)
H 3.00 - 3.05 (0.1181 - 0.1201) S 3.45 - 3.50 (0.1358 - 0.1378)
J 3.05 - 3.10 (0.1201 - 0.1220)
(b) Using a screwdriver and hammer, install the snap ring.
16. INSTALL SPEEDOMETER DRIVE GEAR
(a) Using a screwdriver and hammer, install the front snap ring.
(b) Install the ball and drive gear.
(c) Using a screwdriver and hammer, install the rear snap ring.
