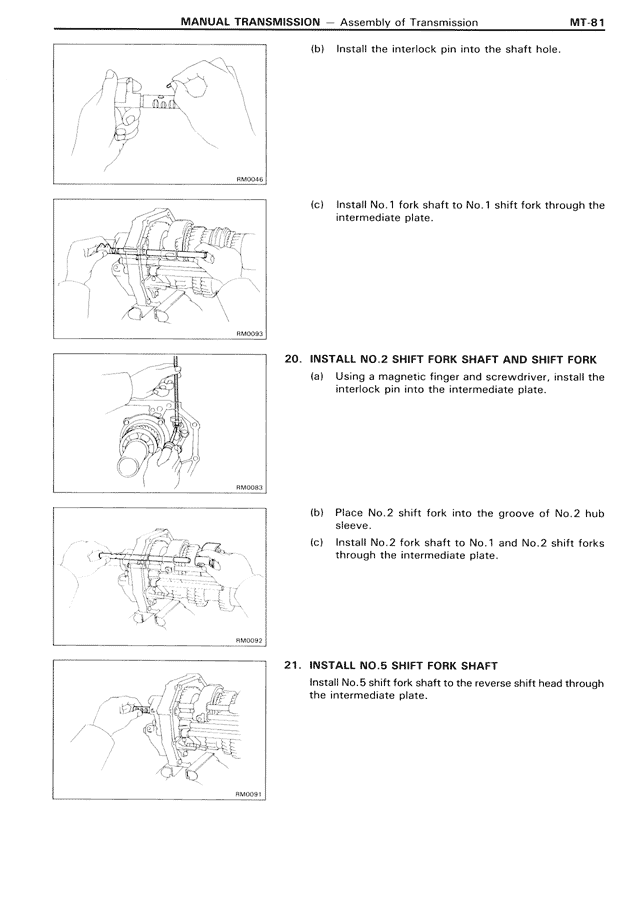

MANUAL TRANSMISSION — Assembly of Transmission MT-81
(b) Install the interlock pin into the shaft hole.
RM0046
(c) Install No.1 fork shaft to No.1 shift fork through the
intermediate plate.
RM0093
20. INSTALL NO.2 SHIFT FORK SHAFT AND SHIFT FORK
(a) Using a magnetic finger and screwdriver, install the
interlock pin into the intermediate plate.
RM0083
(b) Place No.2 shift fork into the groove of No.2 hub
sleeve.
(c) Install No.2 fork shaft to No.1 and No.2 shift forks
through the intermediate plate.
RM0092
21. INSTALL NO.5 SHIFT FORK SHAFT
Install No.5 shift fork shaft to the reverse shift head through
the intermediate plate.
RM0091
