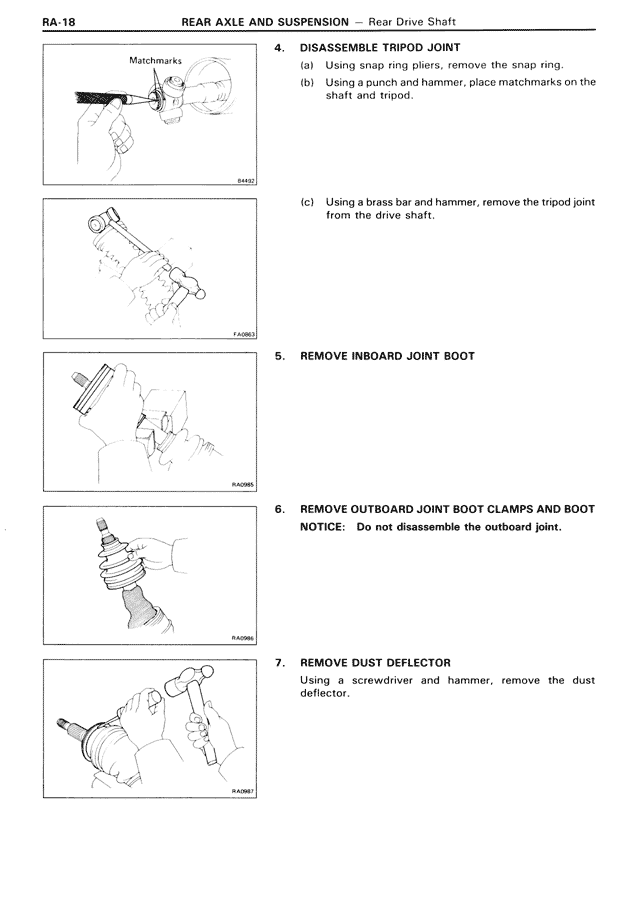

RA-18 REAR AXLE AND SUSPENSION — Rear Drive Shaft
4. DISASSEMBLE TRIPOD JOINT
Matchmarks (a) Using snap ring pliers, remove the snap ring.
(b) Using a punch and hammer, place matchmarks on the
shaft and tripod.
RA4467
(c) Using a brass bar and hammer, remove the tripod joint
from the drive shaft.
RA4468
5. REMOVE INBOARD JOINT BOOT
RA4086
6. REMOVE OUTBOARD JOINT BOOT CLAMPS AND BOOT
NOTICE: Do not disassemble the outboard joint.
RA4066
7. REMOVE DUST DEFLECTOR
Using a screwdriver and hammer, remove the dust
deflector.
RA4087
