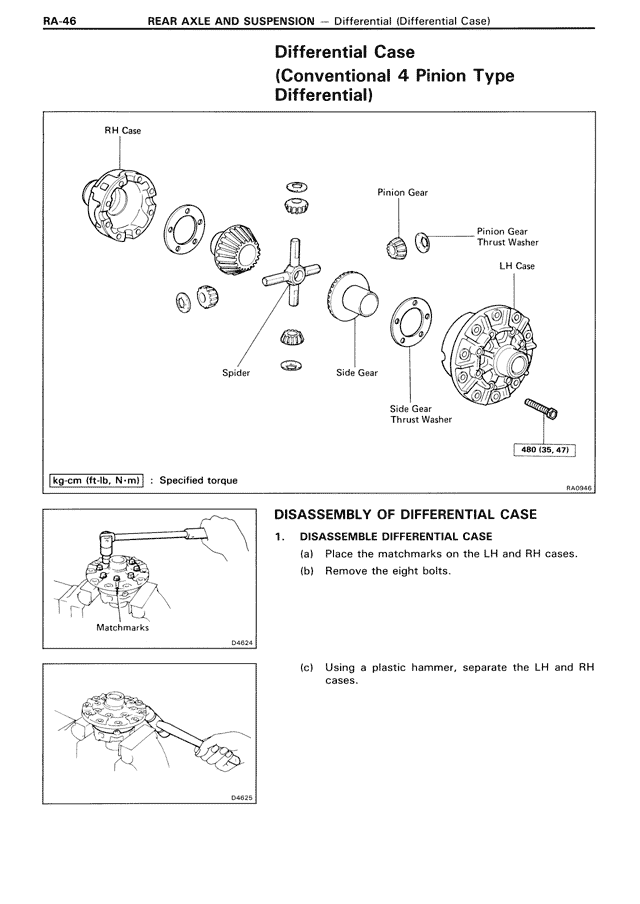

RA/Rear Axle & Suspension — Differential Case (Conventional 4 Pinion Type Differential), page 46

RA-46     REAR AXLE AND SUSPENSION — Differential (Differential Case)

Differential Case
(Conventional 4 Pinion Type
Differential)

RH Case

Pinion Gear

Pinion Gear
Thrust Washer

LH Case

Spider

Side Gear

Side Gear
Thrust Washer

48D (35, 47)

kg·cm (ft·lb, N·m) : Specified torque

RA0584

DISASSEMBLY OF DIFFERENTIAL CASE

1.    DISASSEMBLE DIFFERENTIAL CASE

(a)    Place the matchmarks on the LH and RH cases.

(b)    Remove the eight bolts.

Matchmarks

D463-4

(c)    Using a plastic hammer, separate the LH and RH
cases.

D463-5
