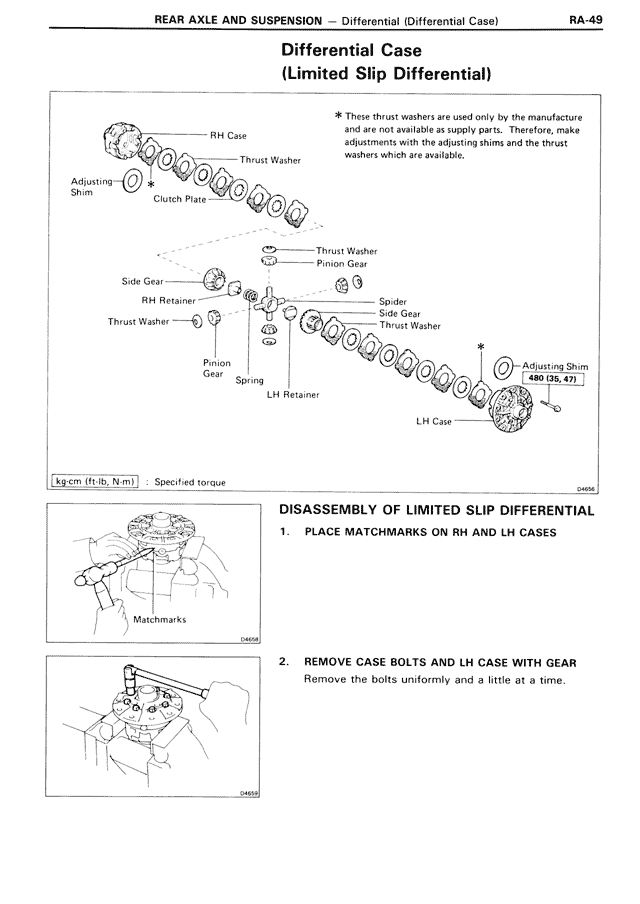

RA/Rear Axle & Suspension — Differential Case (Limited Slip Differential), page 49

Differential Case
(Limited Slip Differential)

* These thrust washers are used only by the manufacture and are not available as supply parts. Therefore, make adjustments with the adjusting shims and the thrust washers which are available.

RH Case
Thrust Washer
Adjusting Shim
Clutch Plate

Thrust Washer
Pinion Gear
Side Gear
RH Retainer
Spider
Side Gear
Thrust Washer
Thrust Washer
Pinion Gear
Spring
Adjusting Shim
JBD [35, 47]
LH Retainer
LH Case

kg·cm (ft·lb, N·m) : Specified torque

DM456

DISASSEMBLY OF LIMITED SLIP DIFFERENTIAL

1. PLACE MATCHMARKS ON RH AND LH CASES

Matchmarks

DM454

2. REMOVE CASE BOLTS AND LH CASE WITH GEAR
Remove the bolts uniformly and a little at a time.

DM453
