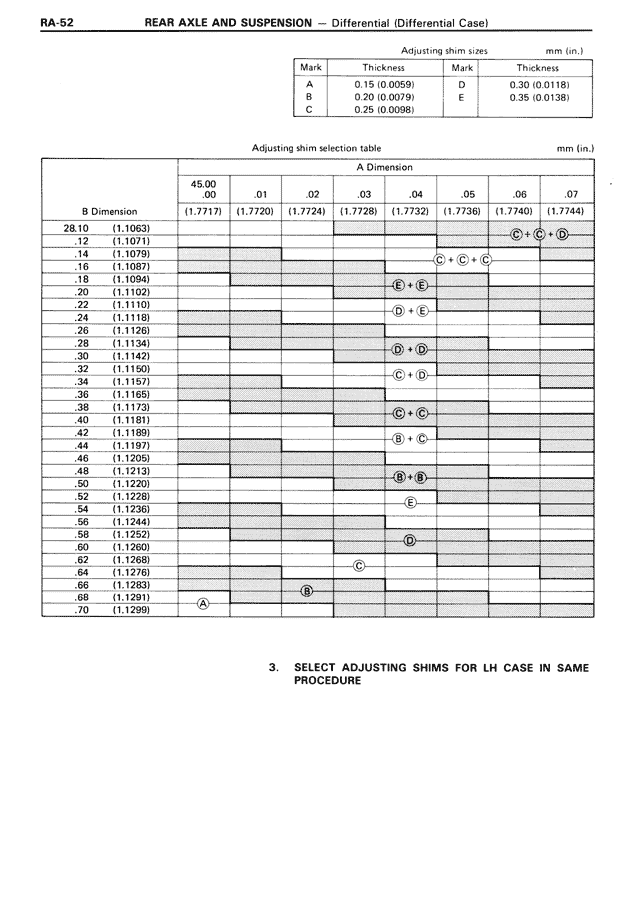

RA-52 REAR AXLE AND SUSPENSION — Differential (Differential Case)
Adjusting shim sizes mm (in.)
Mark Thickness Mark Thickness
A 0.15 (0.0059) D 0.30 (0.0118)
B 0.20 (0.0079) E 0.35 (0.0138)
C 0.25 (0.0098)
Adjusting shim selection table mm (in.)
A Dimension
B Dimension 45.00
.00 01 02 03 04 05 06 07
(1.7717) (1.7724) (1.7728) (1.7732) (1.7736) (1.7740) (1.7744)
28.10 (1.1063) ⊕+Ⓒ+①+⊕
.12 (1.1071)
.14 (1.1079) ⊕+Ⓒ+Ⓒ
.16 (1.1087)
.18 (1.1094) Ⓔ+Ⓔ
.20 (1.1102)
.22 (1.1110) ①+Ⓔ
.24 (1.1118)
.26 (1.1126)
.28 (1.1134) ①+①
.30 (1.1142)
.32 (1.1150) Ⓒ+①
.34 (1.1157)
.36 (1.1165)
.38 (1.1173) Ⓒ+Ⓒ
.40 (1.1181)
.42 (1.1189) ⑧+Ⓒ
.44 (1.1197)
.46 (1.1205)
.48 (1.1213) ⑧+①
.50 (1.1220)
.52 (1.1228) Ⓔ
.54 (1.1236)
.56 (1.1244)
.58 (1.1252) ①
.60 (1.1260)
.62 (1.1268) Ⓒ
.64 (1.1276)
.66 (1.1283) ⑧
.68 (1.1291)
.70 (1.1299) Ⓐ
3. SELECT ADJUSTING SHIMS FOR LH CASE IN SAME
PROCEDURE
