RA/Rear Axle & Suspension — Rear Suspension Component, page 56

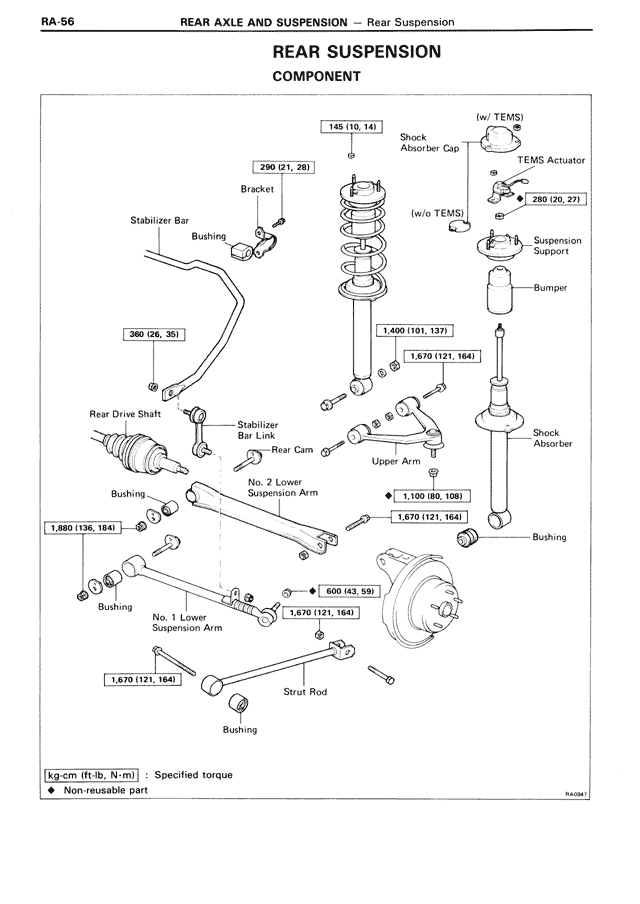

REAR SUSPENSION
COMPONENT

(w/ TEMS)
145 [10, 14]
Shock
Absorber Cap
TEMS Actuator
290 [21, 20]
Bracket
280 [20, 27]
(w/o TEMS)
Suspension
Support
Stabilizer Bar
Bushing
Bumper
360 [26, 36]
1,400 [101, 137]
1,670 [121, 164]
Rear Drive Shaft
Stabilizer
Shock
Bar Link
Absorber
Rear Cam
Upper Arm
No. 2 Lower
1,100 [80, 108]
Suspension Arm
1,670 [121, 164]
Bushing
1,880 [136, 184]
Bushing
800 [43, 59]
No. 1 Lower
1,670 [121, 164]
Suspension Arm
1,670 [121, 164]
Strut Rod
Bushing

[kg·cm (ft·lb, N·m)] : Specified torque
◆ Non-reusable part

RA5067
