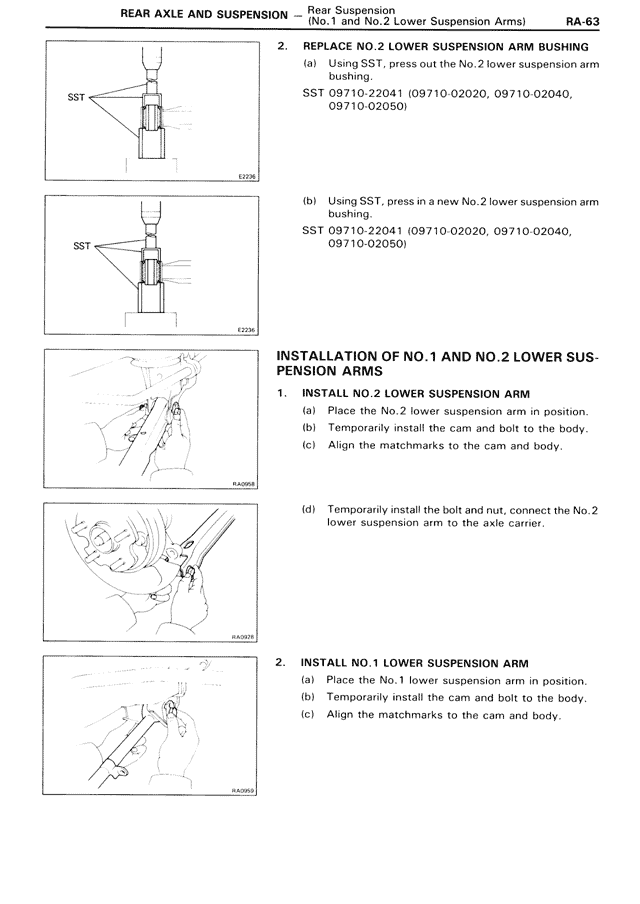

2. REPLACE NO.2 LOWER SUSPENSION ARM BUSHING
(a) Using SST, press out the No.2 lower suspension arm bushing.
SST 09710-22041 (09710-02020, 09710-02040, 09710-02050)
(b) Using SST, press in a new No.2 lower suspension arm bushing.
SST 09710-22041 (09710-02020, 09710-02040, 09710-02050)
INSTALLATION OF NO.1 AND NO.2 LOWER SUS-PENSION ARMS
1. INSTALL NO.2 LOWER SUSPENSION ARM
(a) Place the No.2 lower suspension arm in position.
(b) Temporarily install the cam and bolt to the body.
(c) Align the matchmarks to the cam and body.
(d) Temporarily install the bolt and nut, connect the No.2 lower suspension arm to the axle carrier.
2. INSTALL NO.1 LOWER SUSPENSION ARM
(a) Place the No.1 lower suspension arm in position.
(b) Temporarily install the cam and bolt to the body.
(c) Align the matchmarks to the cam and body.
