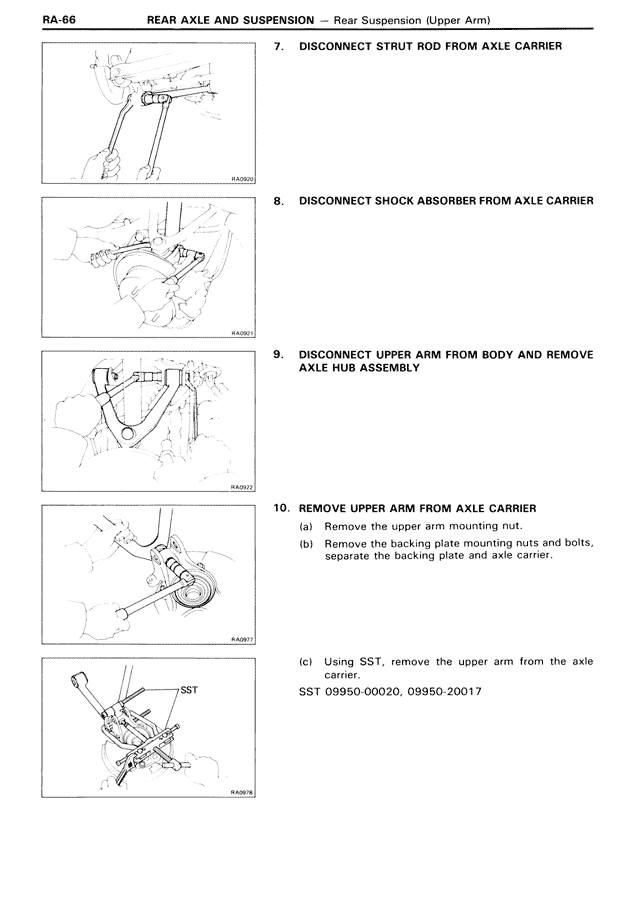

RA-66
REAR AXLE AND SUSPENSION — Rear Suspension (Upper Arm)
7. DISCONNECT STRUT ROD FROM AXLE CARRIER
8. DISCONNECT SHOCK ABSORBER FROM AXLE CARRIER
9. DISCONNECT UPPER ARM FROM BODY AND REMOVE AXLE HUB ASSEMBLY
10. REMOVE UPPER ARM FROM AXLE CARRIER
(a) Remove the upper arm mounting nut.
(b) Remove the backing plate mounting nuts and bolts, separate the backing plate and axle carrier.
(c) Using SST, remove the upper arm from the axle carrier.
SST 09950-00020, 09950-20017
