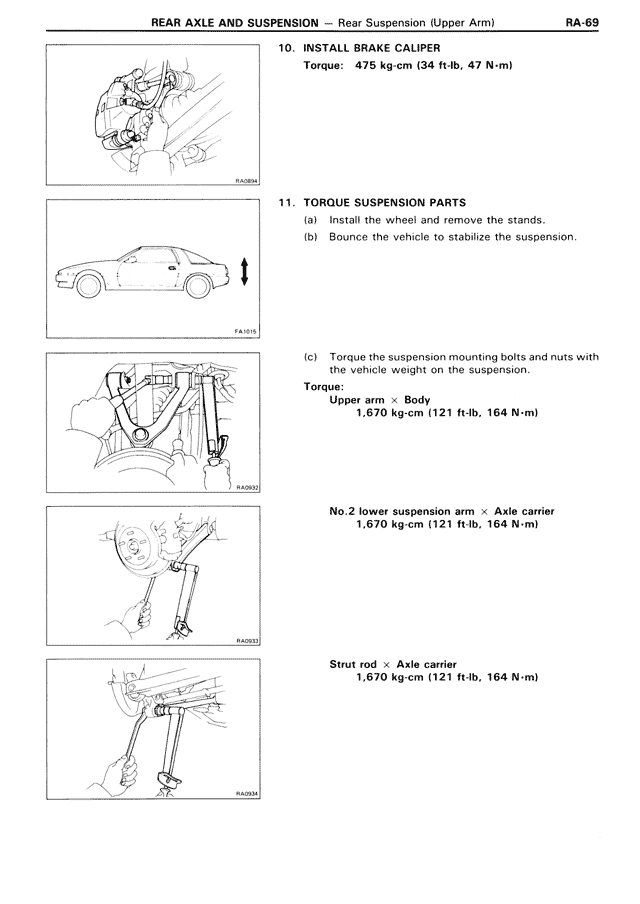

10. INSTALL BRAKE CALIPER
Torque: 475 kg-cm (34 ft-lb, 47 N-m)
11. TORQUE SUSPENSION PARTS
(a) Install the wheel and remove the stands.
(b) Bounce the vehicle to stabilize the suspension.
(c) Torque the suspension mounting bolts and nuts with
the vehicle weight on the suspension.
Torque:
Upper arm × Body
1,670 kg-cm (121 ft-lb, 164 N-m)
No.2 lower suspension arm × Axle carrier
1,670 kg-cm (121 ft-lb, 164 N-m)
Strut rod × Axle carrier
1,670 kg-cm (121 ft-lb, 164 N-m)
