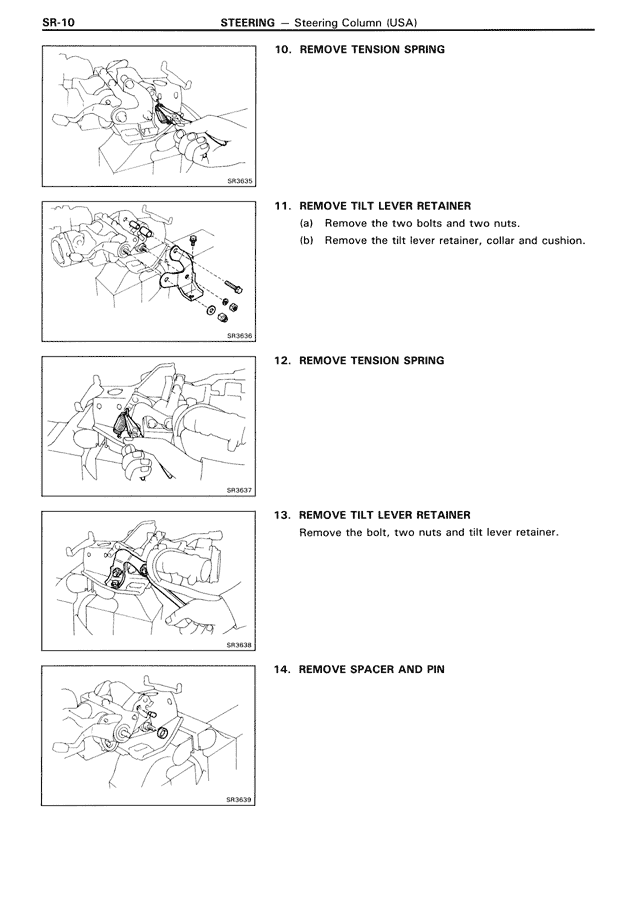

SR-10 STEERING — Steering Column (USA) 10. REMOVE TENSION SPRING [Diagram SR3635] 11. REMOVE TILT LEVER RETAINER (a) Remove the two bolts and two nuts. (b) Remove the tilt lever retainer, collar and cushion. [Diagram SR3636] 12. REMOVE TENSION SPRING [Diagram SR3637] 13. REMOVE TILT LEVER RETAINER Remove the bolt, two nuts and tilt lever retainer. [Diagram SR3638] 14. REMOVE SPACER AND PIN [Diagram SR3639]
