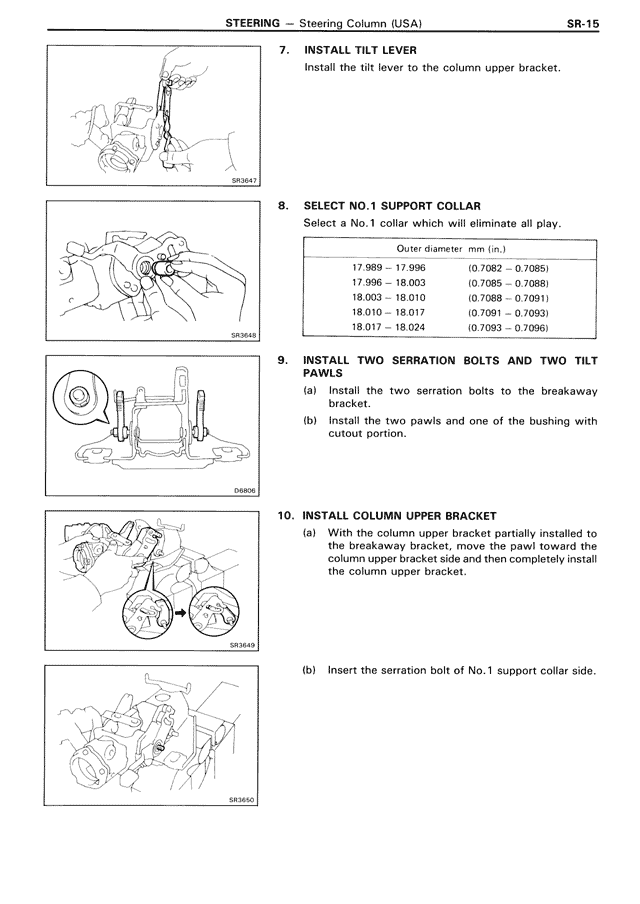

7. INSTALL TILT LEVER
Install the tilt lever to the column upper bracket.
8. SELECT NO.1 SUPPORT COLLAR
Select a No.1 collar which will eliminate all play.
Outer diameter mm (in.)
17.989 - 17.996 (0.7082 - 0.7085)
17.996 - 18.003 (0.7085 - 0.7088)
18.003 - 18.010 (0.7088 - 0.7091)
18.010 - 18.017 (0.7091 - 0.7093)
18.017 - 18.024 (0.7093 - 0.7096)
9. INSTALL TWO SERRATION BOLTS AND TWO TILT PAWLS
(a) Install the two serration bolts to the breakaway bracket.
(b) Install the two pawls and one of the bushing with cutout portion.
10. INSTALL COLUMN UPPER BRACKET
(a) With the column upper bracket partially installed to the breakaway bracket, move the pawl toward the column upper bracket side and then completely install the column upper bracket.
(b) Insert the serration bolt of No.1 support collar side.
