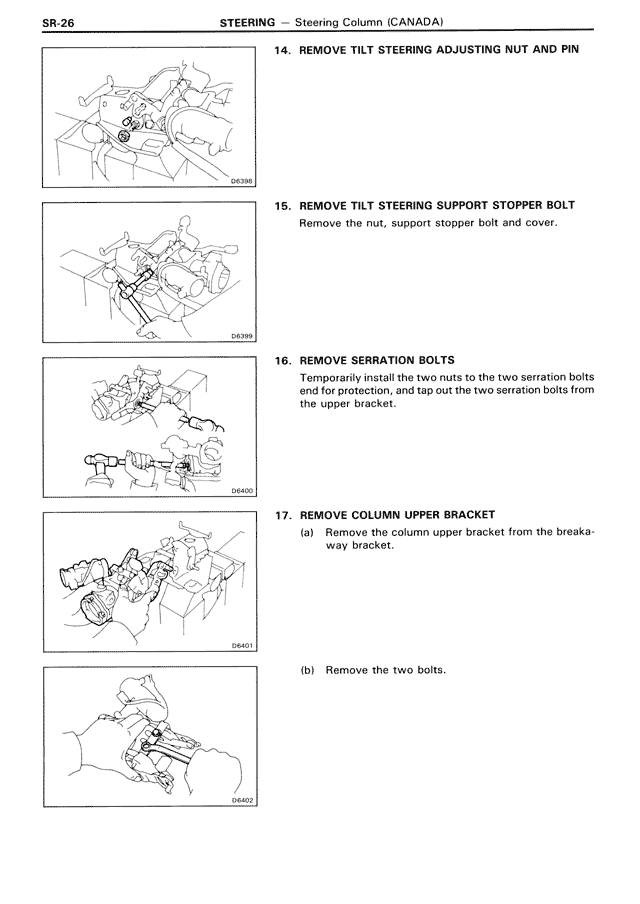

STEERING — Steering Column (CANADA) — MK3 Supra Steering, page 26
100%
SR-26 STEERING — Steering Column (CANADA) 14. REMOVE TILT STEERING ADJUSTING NUT AND PIN D6398 15. REMOVE TILT STEERING SUPPORT STOPPER BOLT Remove the nut, support stopper bolt and cover. D6399 16. REMOVE SERRATION BOLTS Temporarily install the two nuts to the two serration bolts end for protection, and tap out the two serration bolts from the upper bracket. D6400 17. REMOVE COLUMN UPPER BRACKET (a) Remove the column upper bracket from the breaka- way bracket. D6401 (b) Remove the two bolts. D6402
