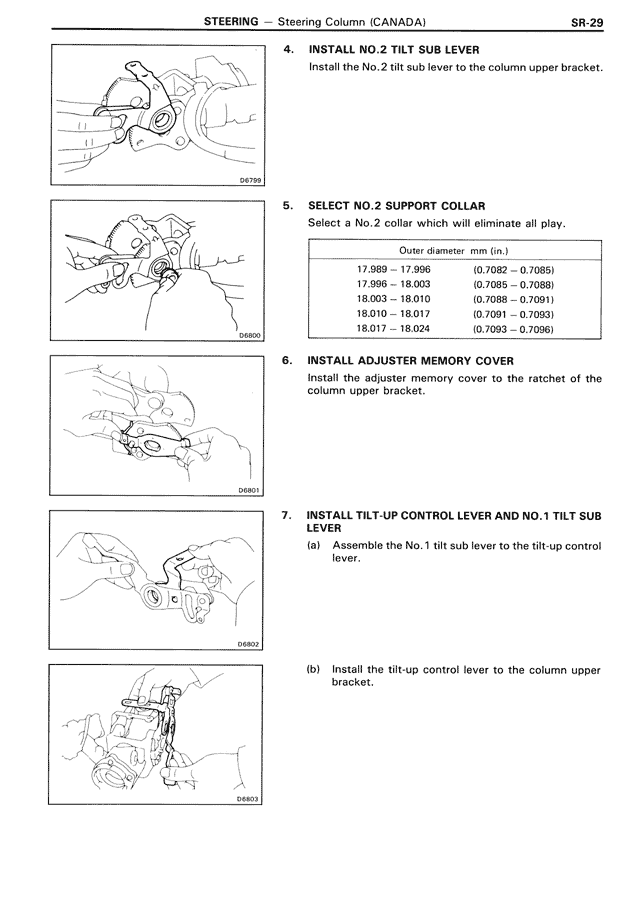

STEERING — Steering Column (CANADA) — MK3 Supra Steering, page 29
100%
4. INSTALL NO.2 TILT SUB LEVER Install the No.2 tilt sub lever to the column upper bracket. 5. SELECT NO.2 SUPPORT COLLAR Select a No.2 collar which will eliminate all play. Outer diameter mm (in.) 17.989 – 17.996 (0.7082 – 0.7085) 17.996 – 18.003 (0.7085 – 0.7088) 18.003 – 18.010 (0.7088 – 0.7091) 18.010 – 18.017 (0.7091 – 0.7093) 18.017 – 18.024 (0.7093 – 0.7096) 6. INSTALL ADJUSTER MEMORY COVER Install the adjuster memory cover to the ratchet of the column upper bracket. 7. INSTALL TILT-UP CONTROL LEVER AND NO.1 TILT SUB LEVER (a) Assemble the No.1 tilt sub lever to the tilt-up control lever. (b) Install the tilt-up control lever to the column upper bracket.
