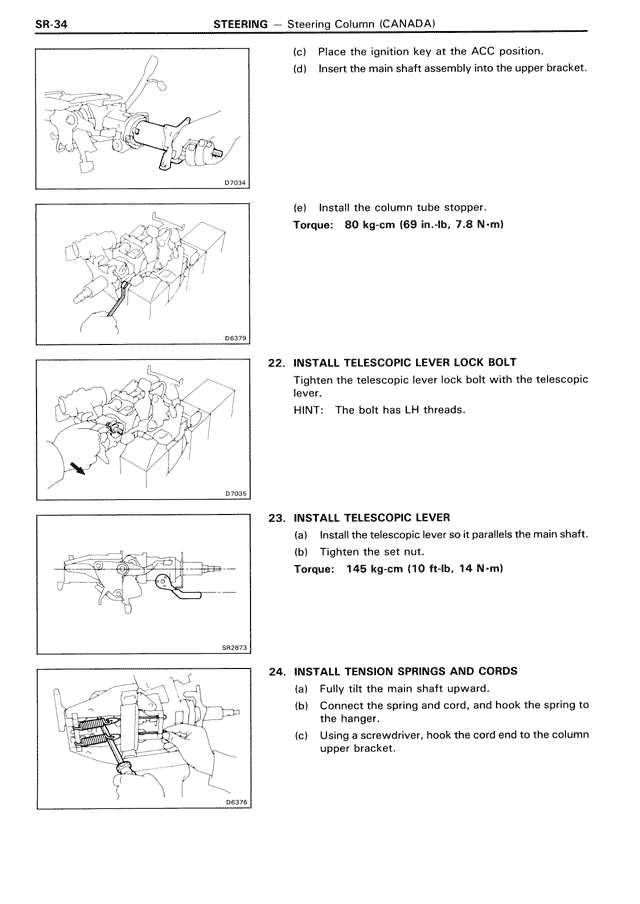

SR-34 STEERING — Steering Column (CANADA)
(c) Place the ignition key at the ACC position.
(d) Insert the main shaft assembly into the upper bracket.
(e) Install the column tube stopper.
Torque: 80 kg·cm (69 in.·lb, 7.8 N·m)
22. INSTALL TELESCOPIC LEVER LOCK BOLT
Tighten the telescopic lever lock bolt with the telescopic
lever.
HINT: The bolt has LH threads.
23. INSTALL TELESCOPIC LEVER
(a) Install the telescopic lever so it parallels the main shaft.
(b) Tighten the set nut.
Torque: 145 kg·cm (10 ft·lb, 14 N·m)
24. INSTALL TENSION SPRINGS AND CORDS
(a) Fully tilt the main shaft upward.
(b) Connect the spring and cord, and hook the spring to
the hanger.
(c) Using a screwdriver, hook the cord end to the column
upper bracket.
