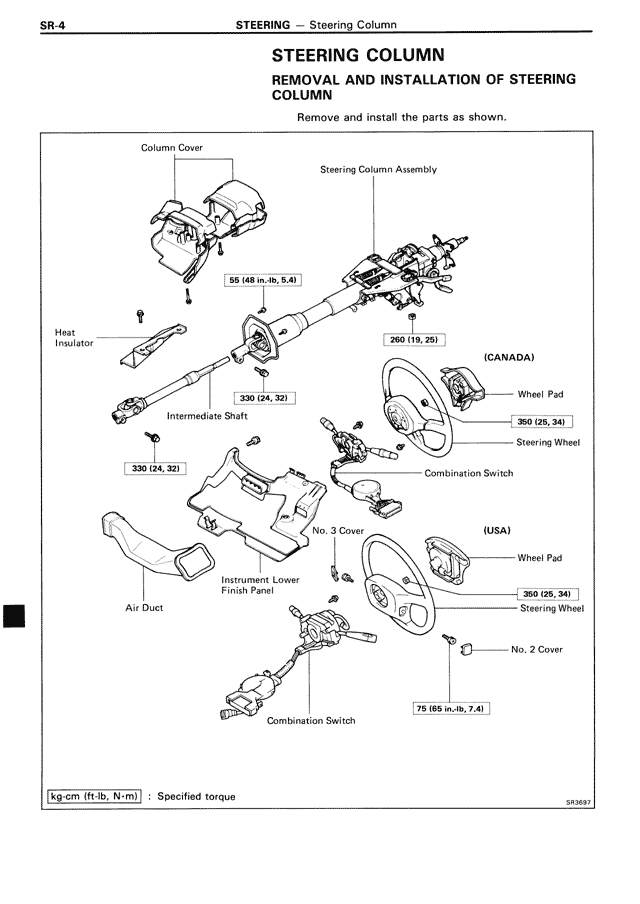

STEERING COLUMN
REMOVAL AND INSTALLATION OF STEERING
COLUMN
Remove and install the parts as shown.
Column Cover
55 (48 in.-lb, 5.4)
Heat
Insulator
330 (24, 32)
Intermediate Shaft
330 (24, 32)
Instrument Lower
Finish Panel
Air Duct
No. 3 Cover
Combination Switch
75 (65 in.-lb, 7.4)
Steering Column Assembly
260 (19, 25)
(CANADA)
Wheel Pad
360 (25, 34)
Steering Wheel
Combination Switch
(USA)
Wheel Pad
360 (25, 34)
Steering Wheel
No. 2 Cover
kg-cm (ft-lb, N-m) : Specified torque
SR5697
