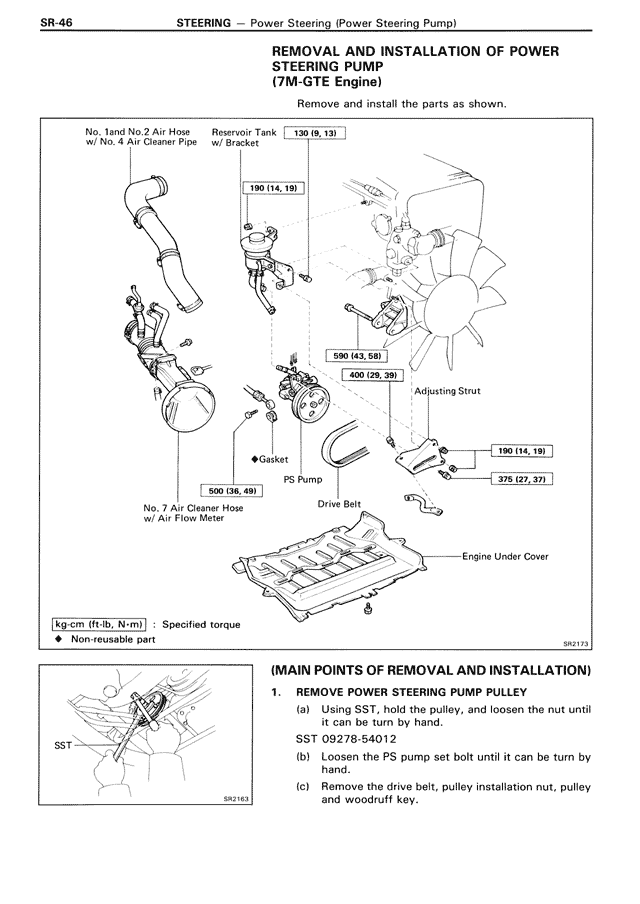

SR-46

STEERING — Power Steering (Power Steering Pump)

REMOVAL AND INSTALLATION OF POWER STEERING PUMP
(7M-GTE Engine)

Remove and install the parts as shown.

No. 1and No.2 Air Hose w/ No. 4 Air Cleaner Pipe

Reservoir Tank w/ Bracket

130 (9, 13)

190 (14, 19)

590 (43, 60)

400 (29, 39)

Adjusting Strut

♦Gasket

190 (14, 19)

375 (27, 37)

500 (36, 49)

No. 7 Air Cleaner Hose w/ Air Flow Meter

PS Pump

Drive Belt

Engine Under Cover

[kg·cm (ft·lb, N·m)] : Specified torque
♦ Non-reusable part

SR2173

(MAIN POINTS OF REMOVAL AND INSTALLATION)

1. REMOVE POWER STEERING PUMP PULLEY
(a) Using SST, hold the pulley, and loosen the nut until it can be turn by hand.
SST 09278-54012
(b) Loosen the PS pump set bolt until it can be turn by hand.
(c) Remove the drive belt, pulley installation nut, pulley and woodruff key.

SST

SR2183
