STEERING — Power Steering (Power Steering Pump)

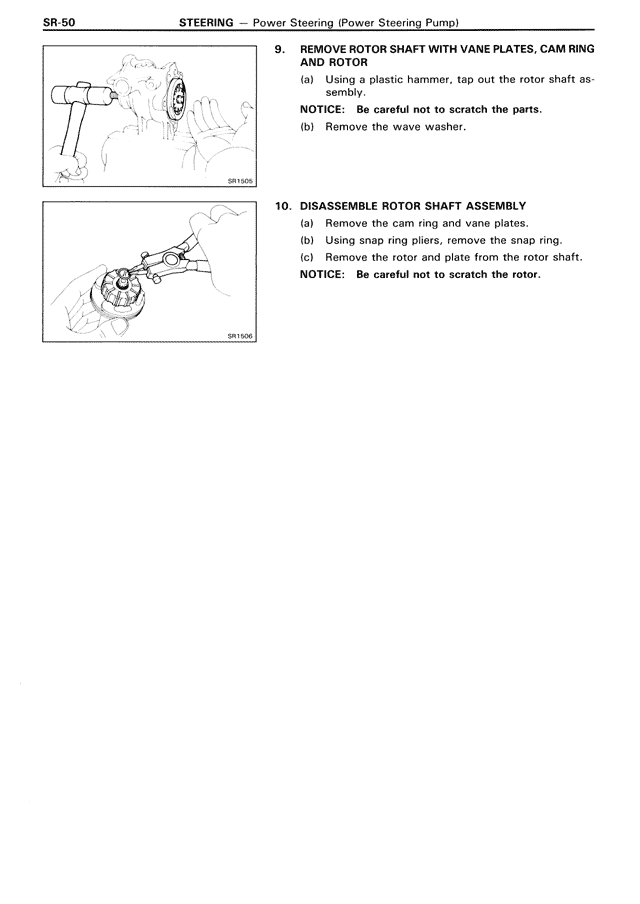

9. REMOVE ROTOR SHAFT WITH VANE PLATES, CAM RING AND ROTOR
(a) Using a plastic hammer, tap out the rotor shaft assembly.
NOTICE: Be careful not to scratch the parts.
(b) Remove the wave washer.

10. DISASSEMBLE ROTOR SHAFT ASSEMBLY
(a) Remove the cam ring and vane plates.
(b) Using snap ring pliers, remove the snap ring.
(c) Remove the rotor and plate from the rotor shaft.
NOTICE: Be careful not to scratch the rotor.
