Gear Housing

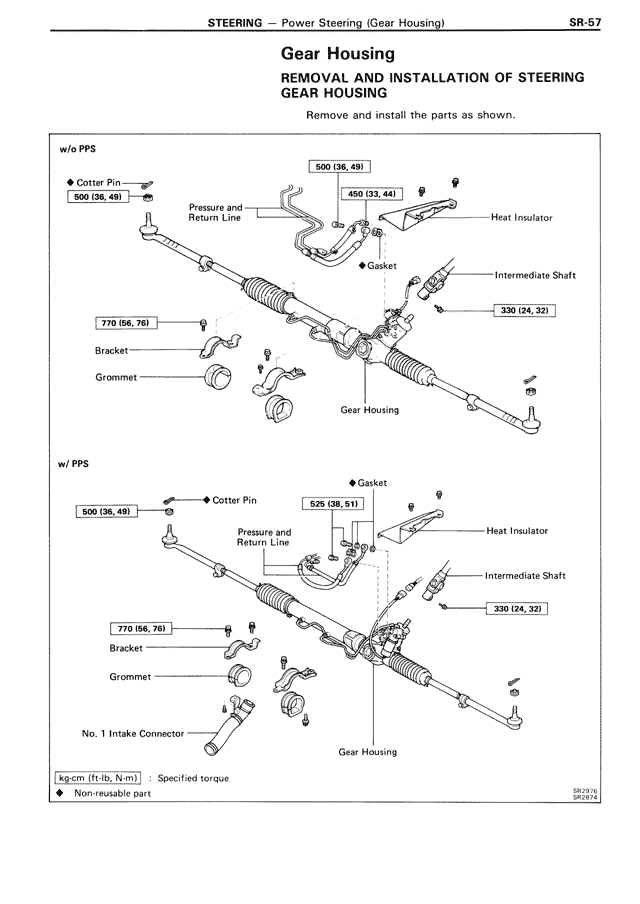

REMOVAL AND INSTALLATION OF STEERING
GEAR HOUSING

Remove and install the parts as shown.

w/o PPS

◆ Cotter Pin
500 [36, 49]

500 [36, 49]

Pressure and
Return Line

460 [33, 44]

Heat Insulator

◆Gasket

Intermediate Shaft

330 [24, 32]

770 [56, 78]

Bracket

Grommet

Gear Housing

w/ PPS

◆Gasket

◆ Cotter Pin
500 [36, 48]

525 [38, 51]

Pressure and
Return Line

Heat Insulator

Intermediate Shaft

330 [24, 32]

770 [56, 78]

Bracket

Grommet

No. 1 Intake Connector

Gear Housing

kg·cm [ft·lbf, N·m] : Specified torque
◆ Non-reusable part

SR2574
SR2574
