SR-76

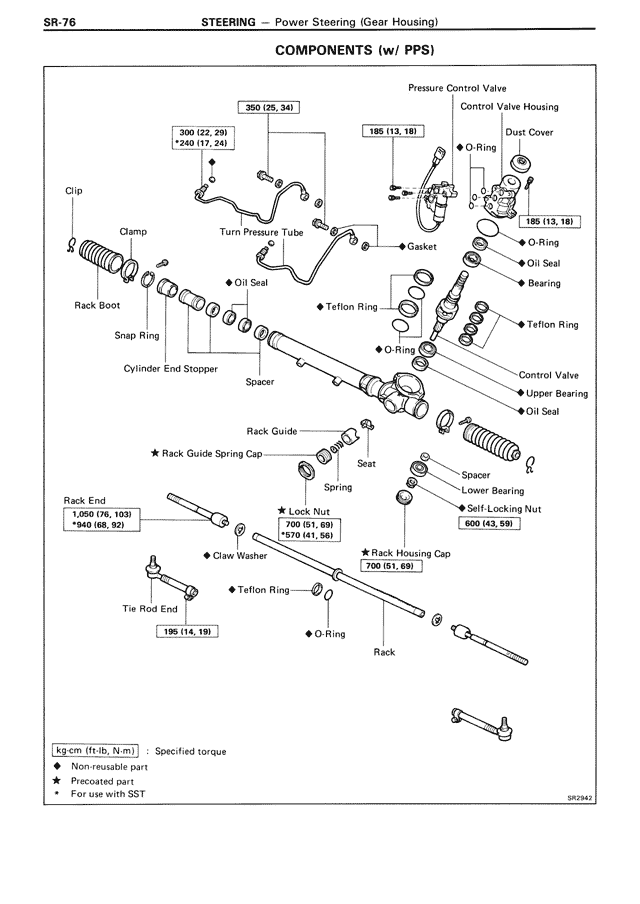

STEERING — Power Steering (Gear Housing)
COMPONENTS (w/ PPS)
Pressure Control Valve
Control Valve Housing
Dust Cover
●O-Ring
85 [13, 18]
●O-Ring
Oil Seal
Bearing
●Teflon Ring
Control Valve
●Upper Bearing
●Oil Seal
Spacer
●Lower Bearing
Self-Locking Nut
800 [43, 59]
Seat
Spring
★Lock Nut
700 [51, 69]
★Rack Housing Cap
700 [51, 69]
●Claw Washer
●Teflon Ring
Tie Rod End
195 [14, 19]
●O-Ring
Rack
390 [25, 34]
300 [22, 29]
*240 [17, 24]
185 [13, 18]
Gasket
Clip
Clamp
Turn Pressure Tube
●Oil Seal
●Teflon Ring
●O-Ring
Rack Boot
Snap Ring
Cylinder End Stopper
Spacer
Rack Guide
★Rack Guide Spring Cap
Rack End
1,050 [76, 103]
*940 [68, 92]
*570 [41, 56]
[ kg·cm (ft-lb, N·m) ] : Specified torque
● Non-reusable part
★ Precoated part
* For use with SST
SR2982
