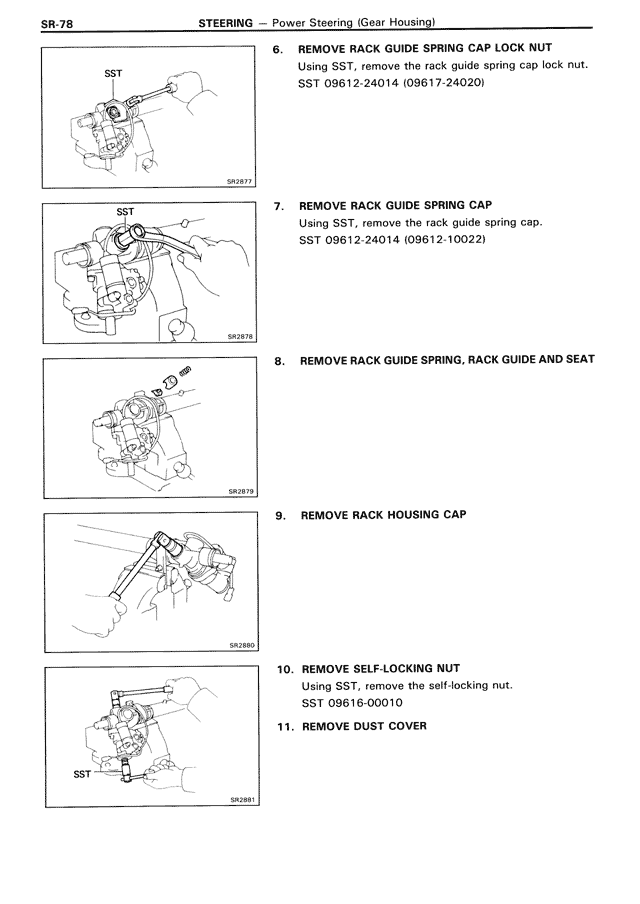

SR-78
STEERING — Power Steering (Gear Housing)
6. REMOVE RACK GUIDE SPRING CAP LOCK NUT
Using SST, remove the rack guide spring cap lock nut.
SST 09612-24014 (09617-24020)
SST
SR2877
7. REMOVE RACK GUIDE SPRING CAP
Using SST, remove the rack guide spring cap.
SST 09612-24014 (09612-10022)
SST
SR2878
8. REMOVE RACK GUIDE SPRING, RACK GUIDE AND SEAT
SR2879
9. REMOVE RACK HOUSING CAP
SR2880
10. REMOVE SELF-LOCKING NUT
Using SST, remove the self-locking nut.
SST 09616-00010
11. REMOVE DUST COVER
SST
SR2881
