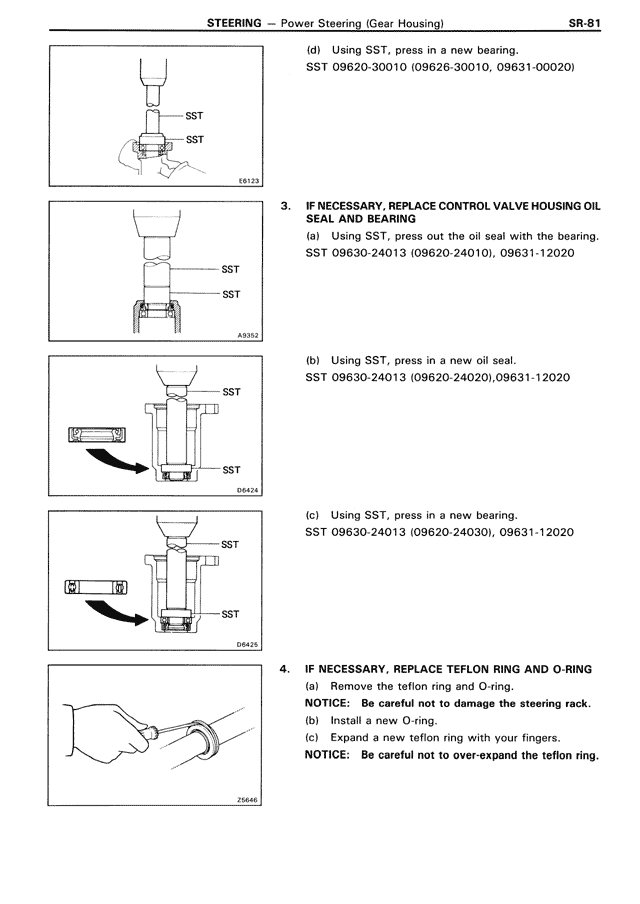

STEERING — Power Steering (Gear Housing) SR-81
(d) Using SST, press in a new bearing.
SST 09620-30010 (09626-30010, 09631-00020)
3. IF NECESSARY, REPLACE CONTROL VALVE HOUSING OIL SEAL AND BEARING
(a) Using SST, press out the oil seal with the bearing.
SST 09630-24013 (09620-24010), 09631-12020
(b) Using SST, press in a new oil seal.
SST 09630-24013 (09620-24020),09631-12020
(c) Using SST, press in a new bearing.
SST 09630-24013 (09620-24030), 09631-12020
4. IF NECESSARY, REPLACE TEFLON RING AND O-RING
(a) Remove the teflon ring and O-ring.
NOTICE: Be careful not to damage the steering rack.
(b) Install a new O-ring.
(c) Expand a new teflon ring with your fingers.
NOTICE: Be careful not to over-expand the teflon ring.
