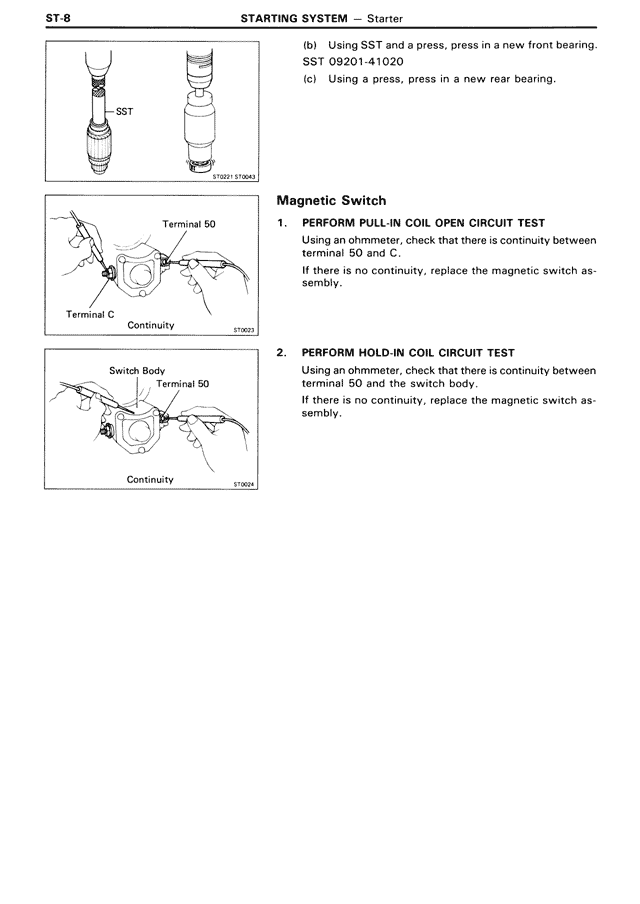

ST-8
STARTING SYSTEM — Starter
[DIAGRAM: Two views of SST tool]
SST
ST0921-31004
ST0921-51004
(b) Using SST and a press, press in a new front bearing.
SST 09201-41020
(c) Using a press, press in a new rear bearing.
[DIAGRAM: Magnetic switch with Terminal 50 and Terminal C labeled, showing Continuity test points]
ST0923
Magnetic Switch
1. PERFORM PULL-IN COIL OPEN CIRCUIT TEST
Using an ohmmeter, check that there is continuity between terminal 50 and C.
If there is no continuity, replace the magnetic switch assembly.
[DIAGRAM: Magnetic switch showing Switch Body, Terminal 50, and Continuity test points]
ST0021
2. PERFORM HOLD-IN COIL CIRCUIT TEST
Using an ohmmeter, check that there is continuity between terminal 50 and the switch body.
If there is no continuity, replace the magnetic switch assembly.
