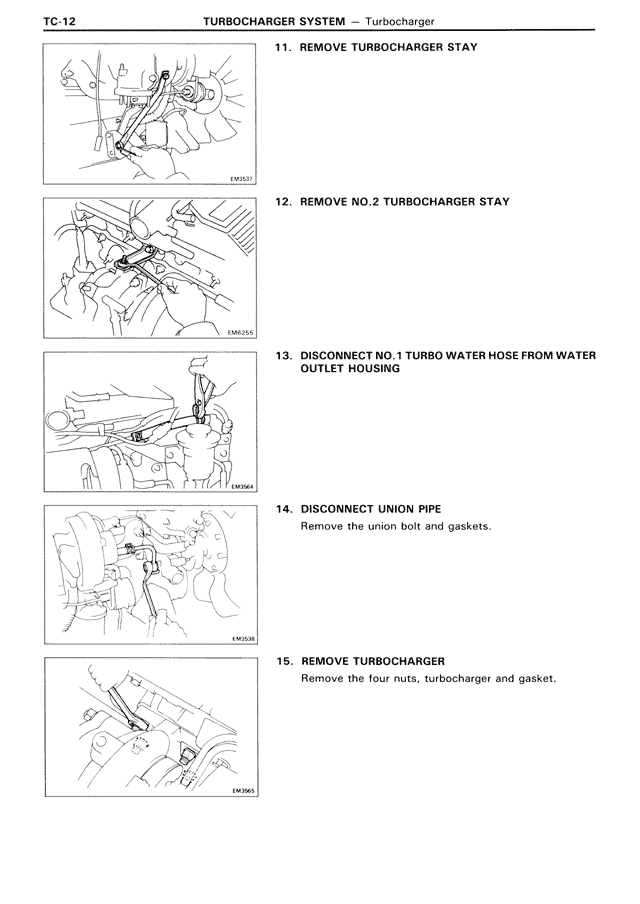

TC-12 TURBOCHARGER SYSTEM — Turbocharger 11. REMOVE TURBOCHARGER STAY 12. REMOVE NO.2 TURBOCHARGER STAY 13. DISCONNECT NO.1 TURBO WATER HOSE FROM WATER OUTLET HOUSING 14. DISCONNECT UNION PIPE Remove the union bolt and gaskets. 15. REMOVE TURBOCHARGER Remove the four nuts, turbocharger and gasket.
