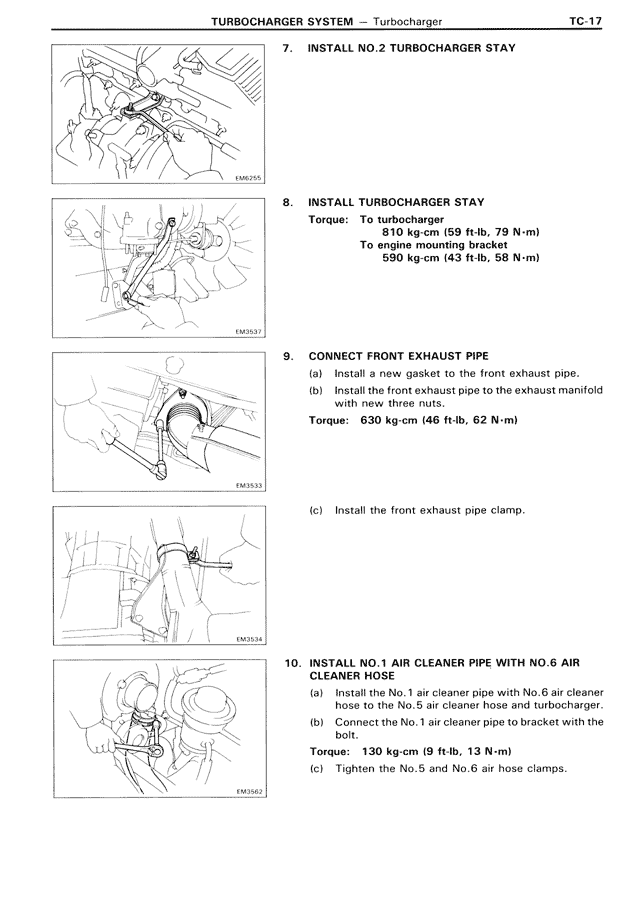

7. INSTALL NO.2 TURBOCHARGER STAY 8. INSTALL TURBOCHARGER STAY Torque: To turbocharger 810 kg·cm (59 ft·lb, 79 N·m) To engine mounting bracket 590 kg·cm (43 ft·lb, 58 N·m) 9. CONNECT FRONT EXHAUST PIPE (a) Install a new gasket to the front exhaust pipe. (b) Install the front exhaust pipe to the exhaust manifold with new three nuts. Torque: 630 kg·cm (46 ft·lb, 62 N·m) (c) Install the front exhaust pipe clamp. 10. INSTALL NO.1 AIR CLEANER PIPE WITH NO.6 AIR CLEANER HOSE (a) Install the No.1 air cleaner pipe with No.6 air cleaner hose to the No.5 air cleaner hose and turbocharger. (b) Connect the No.1 air cleaner pipe to bracket with the bolt. Torque: 130 kg·cm (9 ft·lb, 13 N·m) (c) Tighten the No.5 and No.6 air hose clamps.
