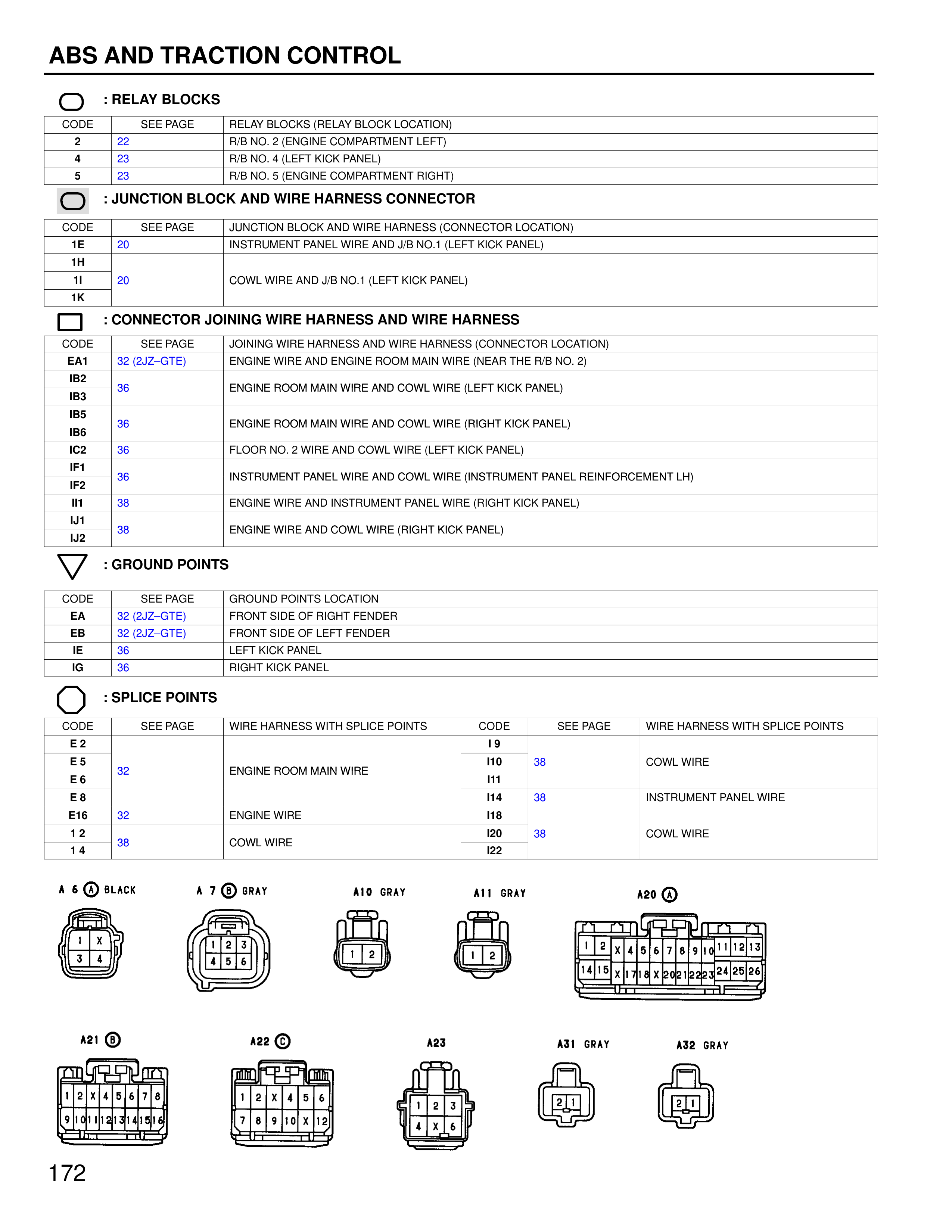

ABS AND TRACTION CONTROL

: RELAY BLOCKS

CODE | SEE PAGE | RELAY BLOCKS (RELAY BLOCK LOCATION)
2 | 22 | R/B NO. 2 (ENGINE COMPARTMENT LEFT)
4 | 23 | R/B NO. 4 (LEFT KICK PANEL)
5 | 23 | R/B NO. 5 (ENGINE COMPARTMENT RIGHT)

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE | SEE PAGE | JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1E | 20 | INSTRUMENT PANEL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1H
1I | 20 | COWL WIRE AND J/B NO.1 (LEFT KICK PANEL)
1K

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
EA1 | 32 (2JZ-GTE) | ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)
IB2 | 36 | ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)
IB3
IB5 | 36 | ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)
IB6
IC2 | 36 | FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL)
IF1 | 36 | INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
IF2
II1 | 38 | ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
IJ1 | 38 | ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)
IJ2

: GROUND POINTS

CODE | SEE PAGE | GROUND POINTS LOCATION
EA | 32 (2JZ-GTE) | FRONT SIDE OF RIGHT FENDER
EB | 32 (2JZ-GTE) | FRONT SIDE OF LEFT FENDER
IE | 36 | LEFT KICK PANEL
IG | 36 | RIGHT KICK PANEL

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E 2
E 5 | 32 | ENGINE ROOM MAIN WIRE | I 9
E 6 | | | I10 | 38 | COWL WIRE
E 8 | | | I11
E16 | 32 | ENGINE WIRE | I14 | 38 | INSTRUMENT PANEL WIRE
I 2 | | | I18
I 4 | 38 | COWL WIRE | I20 | 38 | COWL WIRE
| | | I22

A 6 BLACK | A 7 GRAY | A10 GRAY | A11 GRAY | A20

[Connector diagrams showing pin layouts for connectors A6, A7, A10, A11, A20, A21, A22, A23, A31 GRAY, A32 GRAY]
