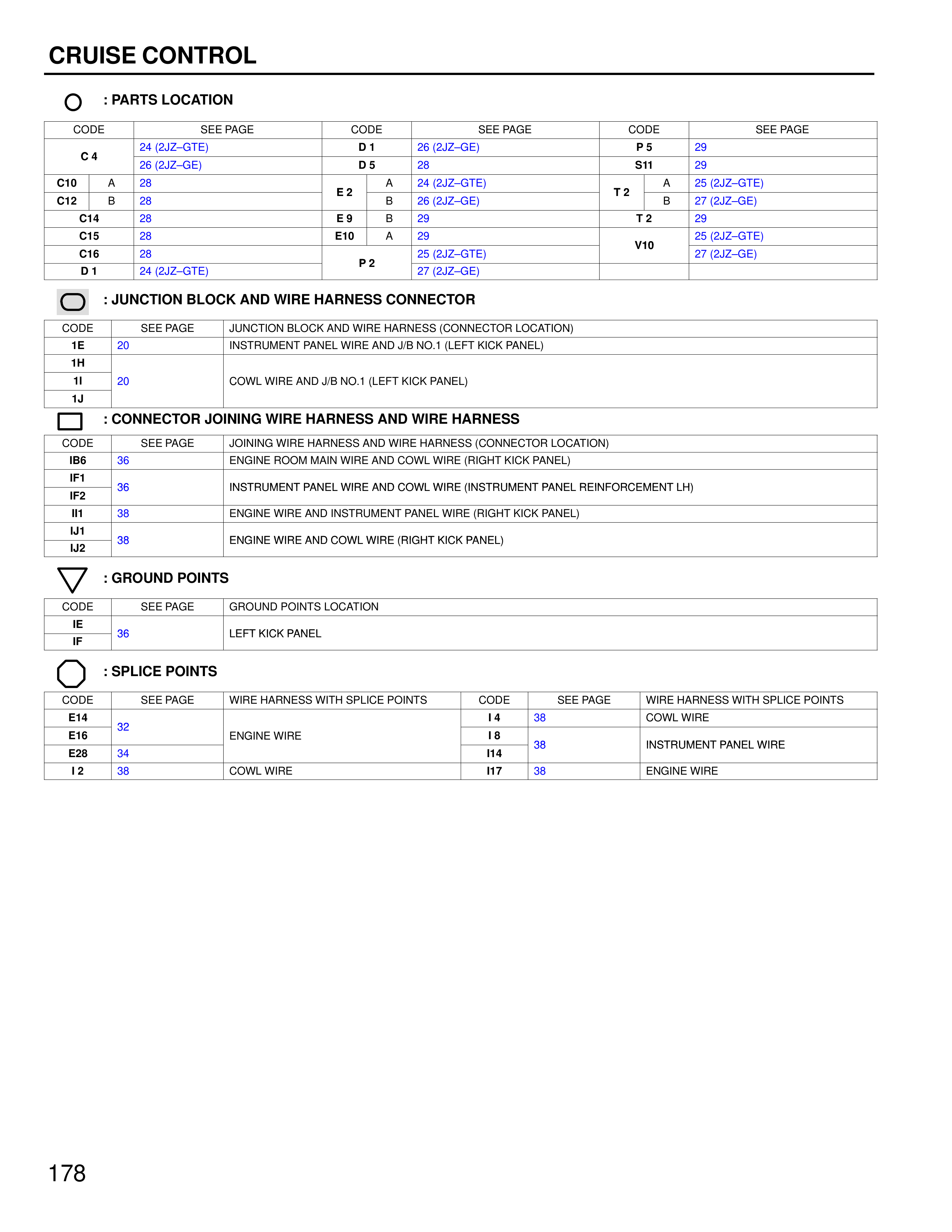

CRUISE CONTROL

: PARTS LOCATION

CODE | SEE PAGE | CODE | SEE PAGE | CODE | SEE PAGE
C4 | 24 (2JZ-GTE) | D1 | 26 (2JZ-GE) | P5 | 29
   | 26 (2JZ-GE)  | D5 | 28 | SI1 | 29
C10 | A | 28 | E2 | A | 24 (2JZ-GTE) | T2 | A | 25 (2JZ-GTE)
C12 | B | 28 |    | B | 26 (2JZ-GE)  |    | B | 27 (2JZ-GE)
C14 |   | 28 | E9 | B | 29 | T2 | 29
C15 |   | 28 | E10 | A | 29
C16 |   | 28 |     |   |    | V10 | 25 (2JZ-GTE)
D1  |   | 24 (2JZ-GTE) | P2 | 25 (2JZ-GTE) |     | 27 (2JZ-GE)
                         |    | 27 (2JZ-GE)

: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

CODE | SEE PAGE | JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1E   | 20       | INSTRUMENT PANEL WIRE AND JB NO.1 (LEFT KICK PANEL)
1H   |
1I   | 20       | COWL WIRE AND JB NO.1 (LEFT KICK PANEL)
1J   |

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

CODE | SEE PAGE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IB6  | 36       | ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)
IF1  | 36       | INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
IF2  |
II1  | 38       | ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
IJ1  | 38       | ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)
IJ2  |

: GROUND POINTS

CODE | SEE PAGE | GROUND POINTS LOCATION
IE   | 36       | LEFT KICK PANEL
IF   |

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E14  | 32       | ENGINE WIRE | I4 | 38 | COWL WIRE
E16  |          |             | I8 | 38 | INSTRUMENT PANEL WIRE
E28  | 34       |             | I14 |
I2   | 38       | COWL WIRE   | I17 | 38 | ENGINE WIRE

178
