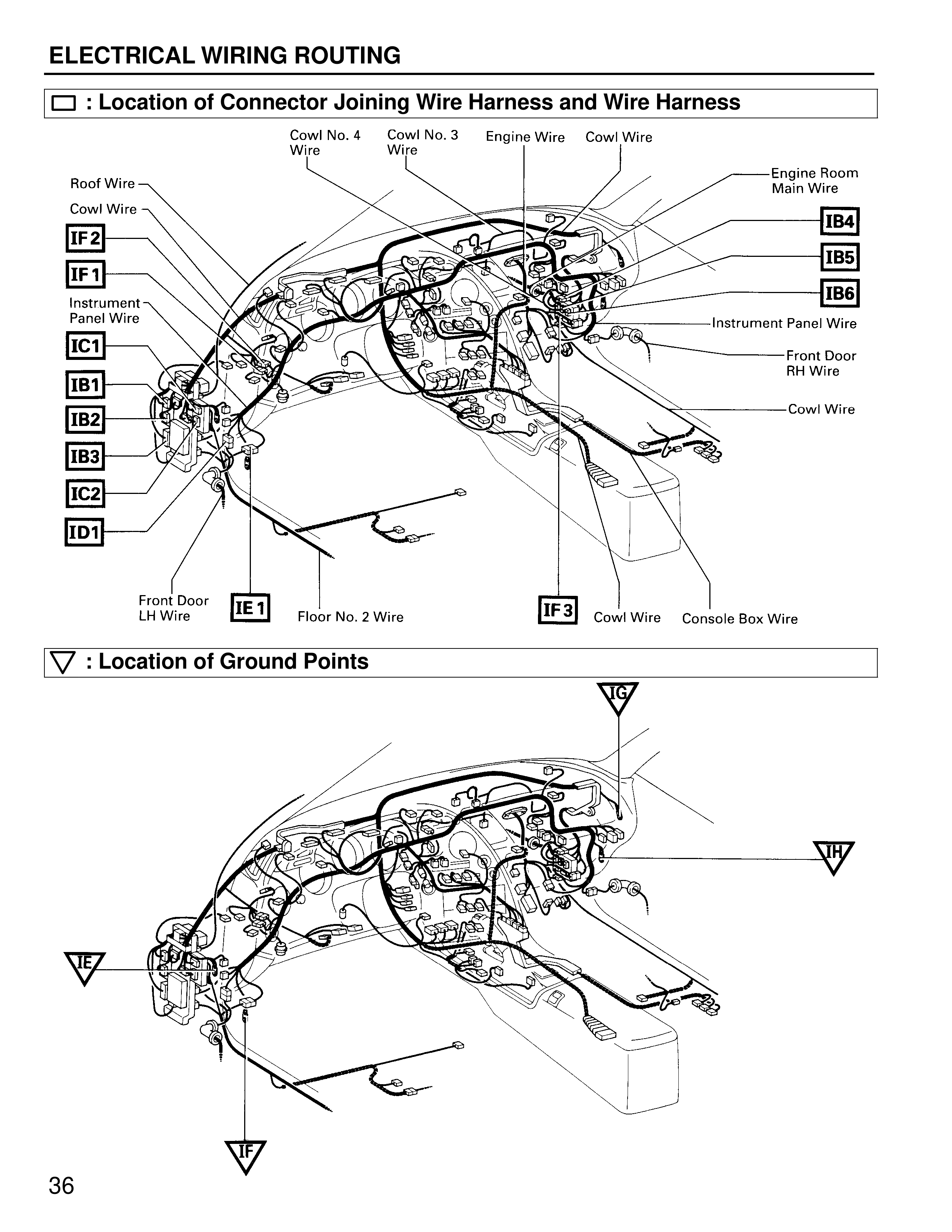

ELECTRICAL WIRING ROUTING □ : Location of Connector Joining Wire Harness and Wire Harness Cowl No. 4 Wire Cowl No. 3 Wire Engine Wire Cowl Wire Roof Wire Cowl Wire IF2 IF1 Instrument Panel Wire IC1 IB1 IB2 IB3 IC2 ID1 Engine Room Main Wire IB4 IB5 IB6 Instrument Panel Wire Front Door RH Wire Cowl Wire Front Door LH Wire IE1 Floor No. 2 Wire IF3 Cowl Wire Console Box Wire ∇ : Location of Ground Points IG7 IH7 IE7 IF7
