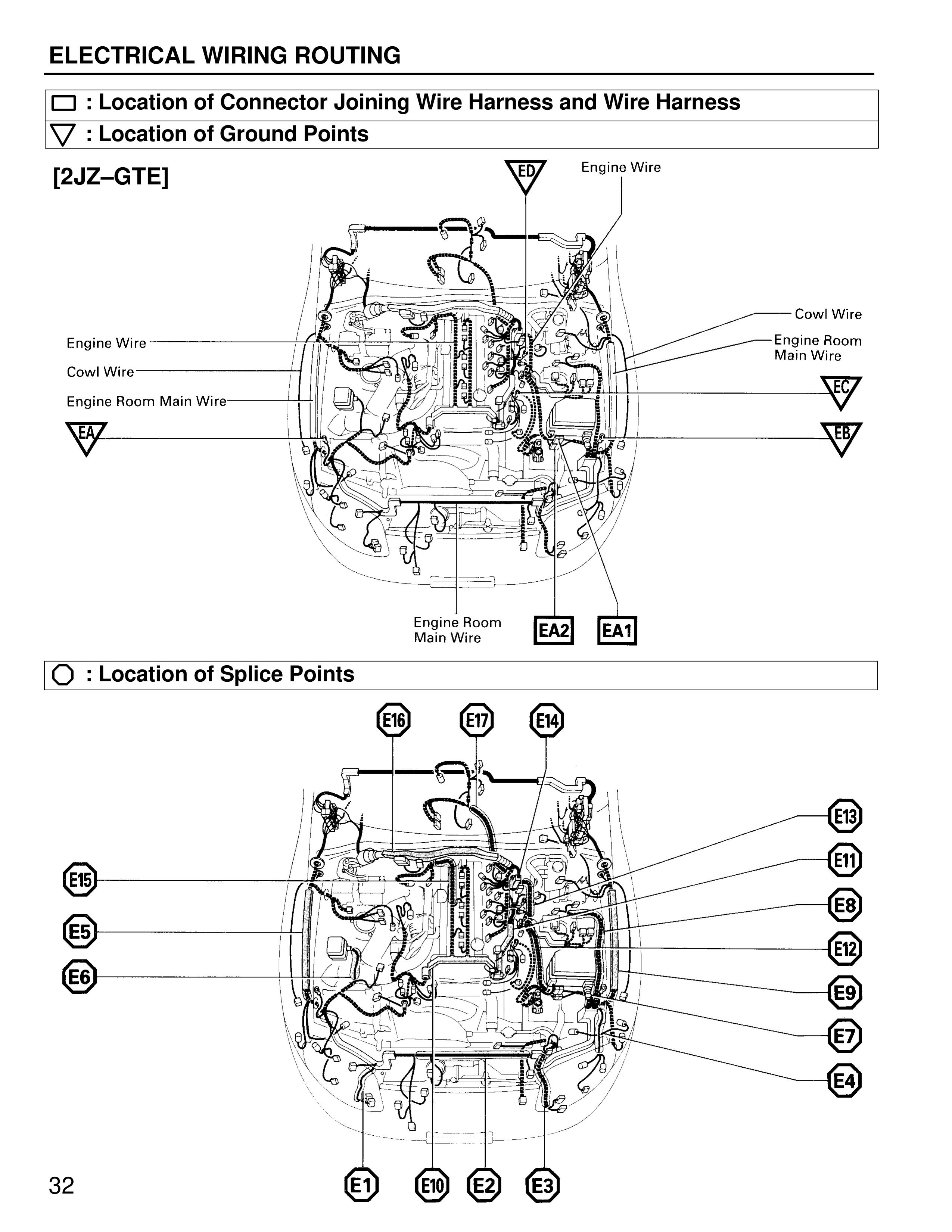

ELECTRICAL WIRING ROUTING
□ : Location of Connector Joining Wire Harness and Wire Harness
▽ : Location of Ground Points
[2JZ-GTE]
ED
Engine Wire
Cowl Wire
Engine Room Main Wire
Engine Wire
Cowl Wire
Engine Room Main Wire
EC
EA
EB
Engine Room Main Wire
EA2
EA1
○ : Location of Splice Points
E18
E17
E14
E13
E15
E11
E5
E8
E12
E6
E9
E7
E4
32
E1
E10
E2
E3
