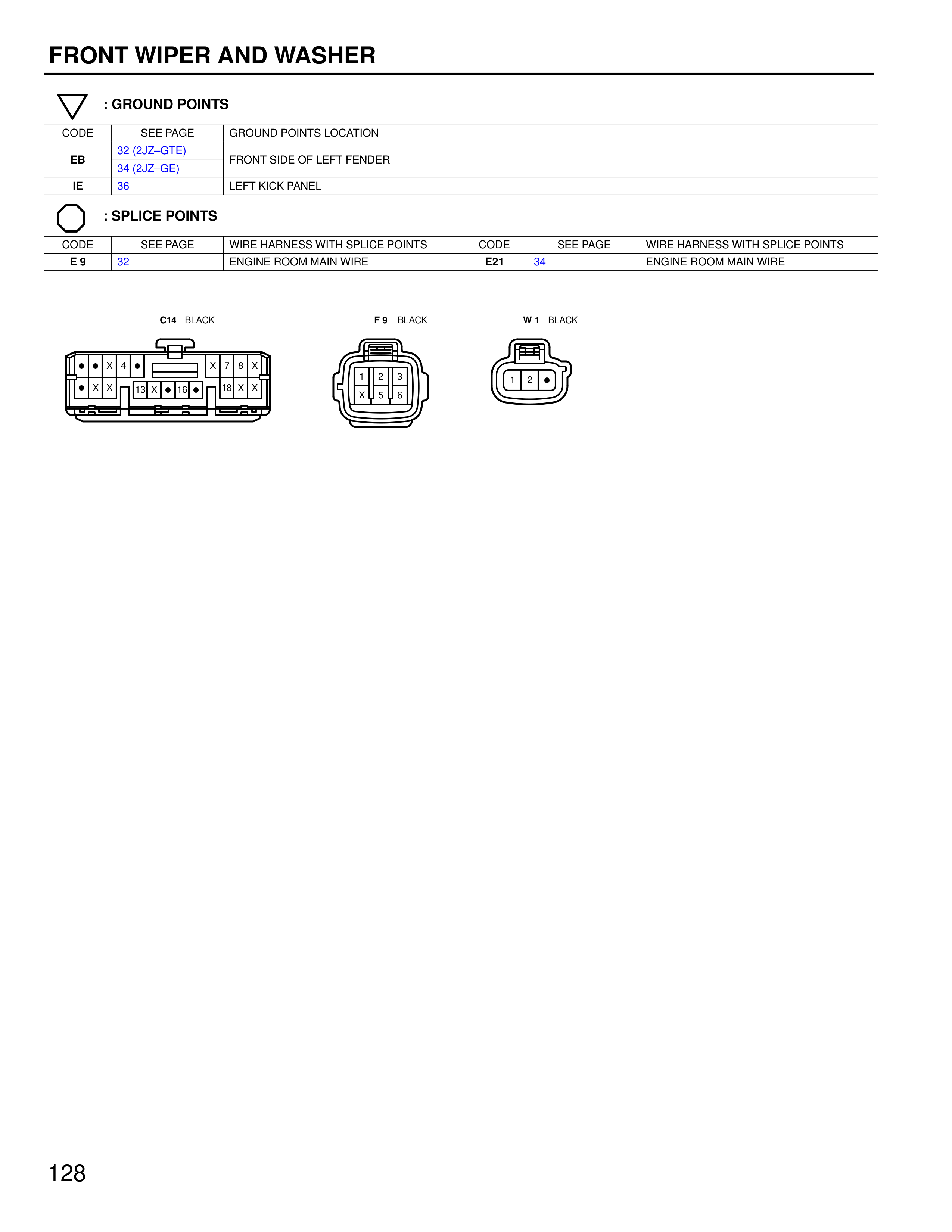

FRONT WIPER AND WASHER

: GROUND POINTS

CODE | SEE PAGE | GROUND POINTS LOCATION
EB | 32 (2JZ–GTE) 34 (2JZ–GE) | FRONT SIDE OF LEFT FENDER
IE | 36 | LEFT KICK PANEL

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E 9 | 32 | ENGINE ROOM MAIN WIRE | E21 | 34 | ENGINE ROOM MAIN WIRE

C14 BLACK
F 9 BLACK
W 1 BLACK

[Connector diagrams showing:
C14: 14-pin connector with numbered pins
F9: 6-pin connector with numbered pins 1-6
W1: 3-pin connector with numbered pins 1-3]

128
