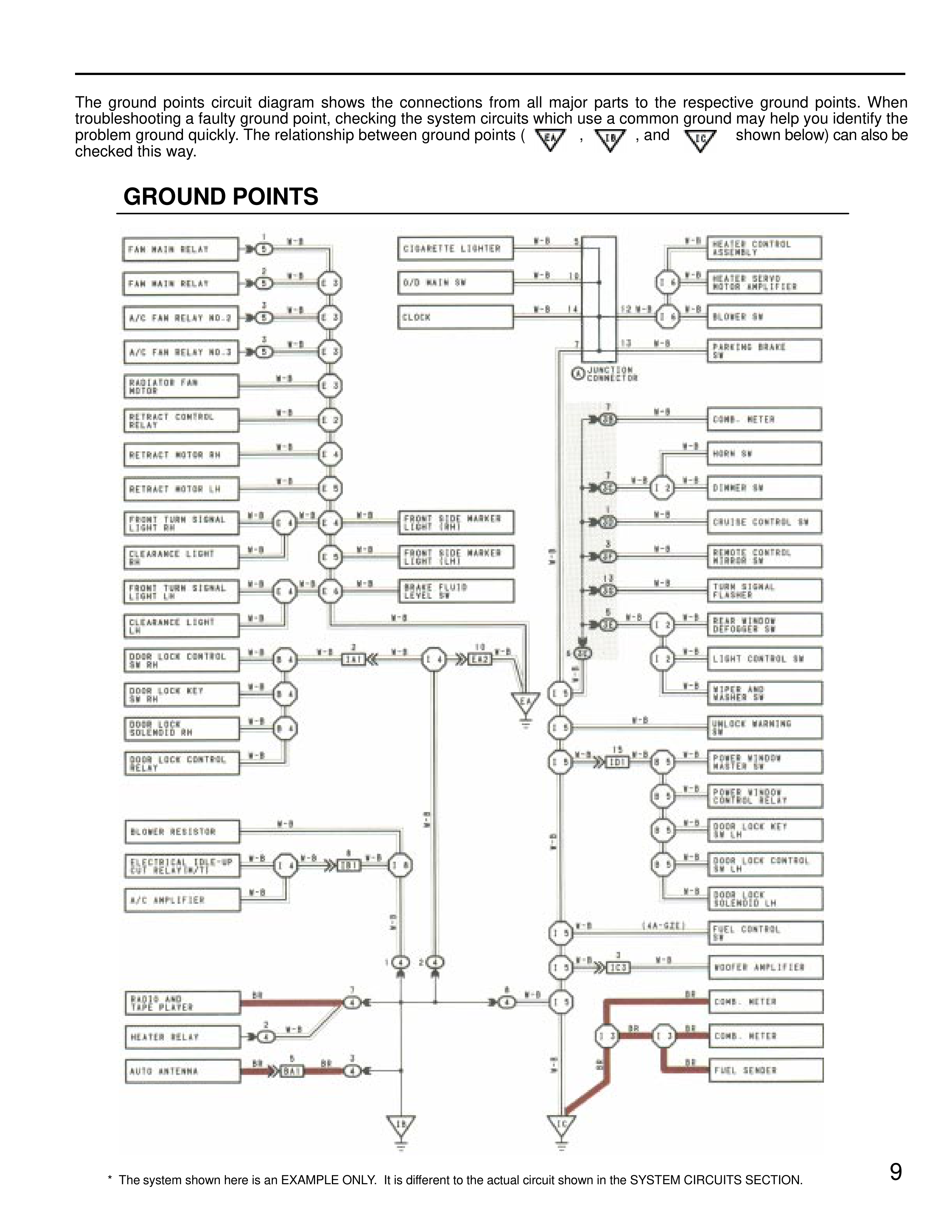

The ground points circuit diagram shows the connections from all major parts to the respective ground points. When troubleshooting a faulty ground point, checking the system circuits which use a common ground may help you identify the problem ground quickly. The relationship between ground points ( [symbol], [symbol], and [symbol] shown below) can also be checked this way. GROUND POINTS FAN MAIN RELAY * B-3 FAN MAIN RELAY * B-3 A/C FAN RELAY NO.2 * B-3 A/C FAN RELAY NO.3 * B-3 RADIATOR FAN MOTOR W-B RETRACT CONTROL RELAY W-B RETRACT MOTOR RH W-B RETRACT MOTOR LH W-B FRONT TURN SIGNAL LIGHT (RH) W-B CLEARANCE LIGHT RH W-B FRONT TURN SIGNAL LIGHT (LH) W-B CLEARANCE LIGHT W-B DOOR LOCK CONTROL SW RH W-B DOOR LOCK KEY SW RH W-B DOOR LOCK SOLENOID RH W-B DOOR LOCK CONTROL RELAY W-B BLOWER RESISTOR W-B ELECTRICAL (SLIDER CUT RELAY)(R) W-B A/C AMPLIFIER W-B RADIO AND TAPE PLAYER D1 HEATER RELAY AUTO ANTENNA D1 CIGARETTE LIGHTER W-B D/D MAIN SW W-B CLOCK W-B JUNCTION CONNECTOR FRONT SIDE MARKER LIGHT (RH) W-B FRONT SIDE MARKER LIGHT (LH) W-B FRONT FOGLIGHT (SIDE LH) W-B COMB. METER HORN SW DIMMER SW ENGINE CONTROL SW REMOTE CONTROL MIRROR SW CENTRAL JUNCTL FLASHER REAR WINDOW DEFROSTER SW LIGHT CONTROL SW WIPER & WASHER SW UNLOCK WARNING SW POWER WINDOW MASTER SW POWER WINDOW CONTROL RELAY DOOR LOCK KEY SW LH DOOR LOCK CONTROL SW LH DOOR LOCK SOLENOID LH FUEL CONTROL EA WOOFER AMPLIFIER COMB. METER COMB. METER FUEL SENDER HEATER CONTROL SOLENOID WASHER MOTOR AMPLIFIER BLOWER SW PARKING BRAKE SW * The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION.
