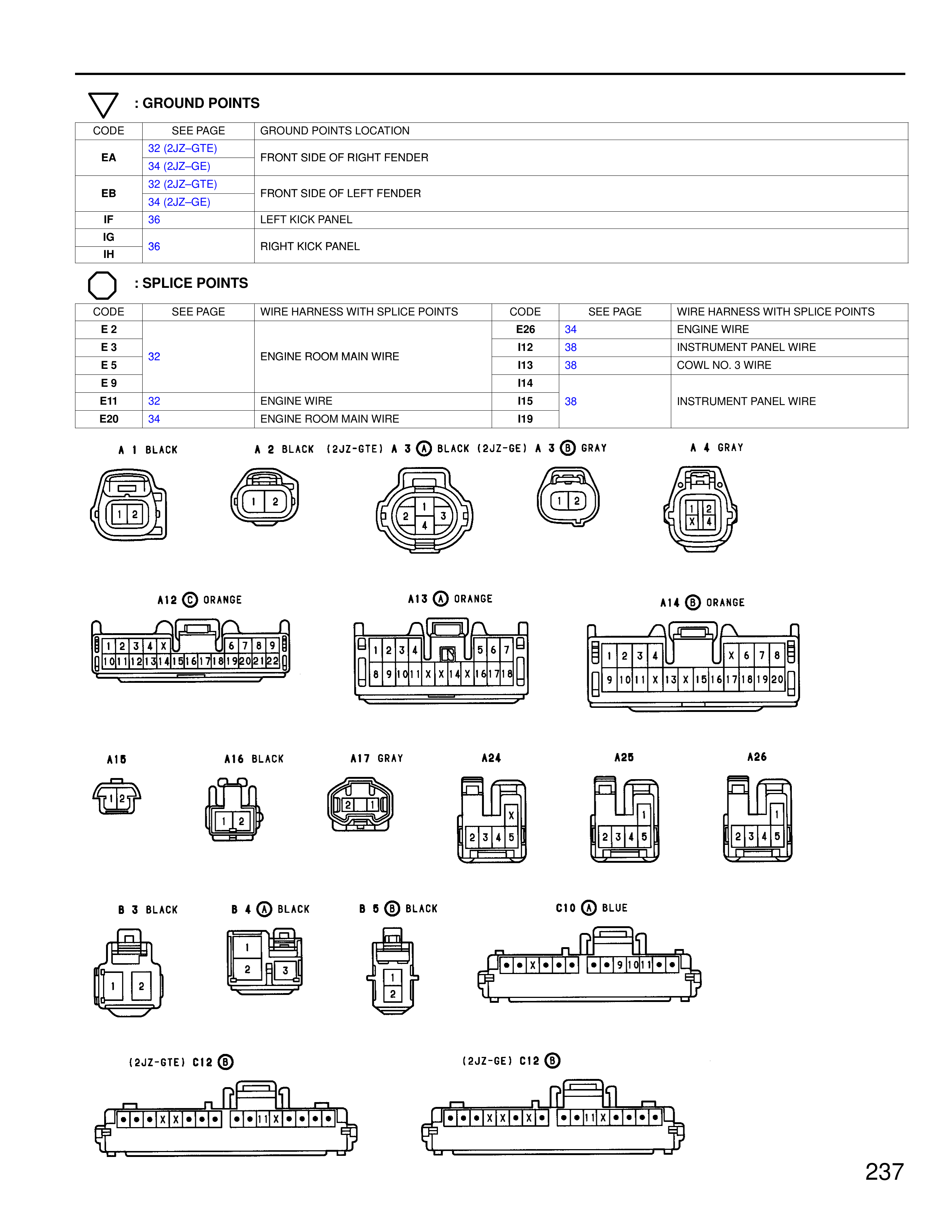

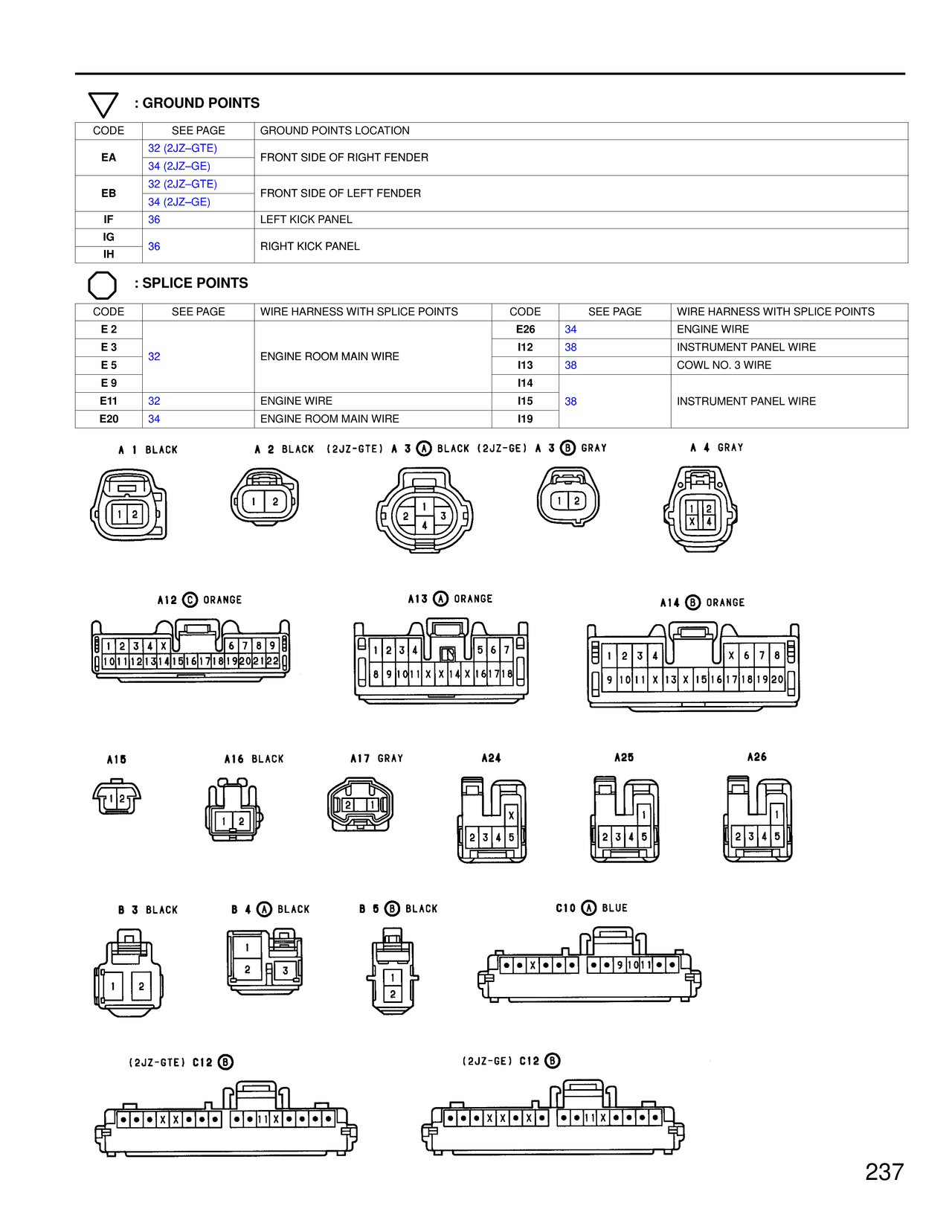

▽ : GROUND POINTS
CODE | SEE PAGE | GROUND POINTS LOCATION
EA | 32 (2JZ-GTE) 34 (2JZ-GE) | FRONT SIDE OF RIGHT FENDER
EB | 32 (2JZ-GTE) 34 (2JZ-GE) | FRONT SIDE OF LEFT FENDER
IF | 36 | LEFT KICK PANEL
IG | 36 | RIGHT KICK PANEL
IH | 36 |
○ : SPLICE POINTS
CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E2 | | | E26 | 34 | ENGINE WIRE
E3 | 32 | ENGINE ROOM MAIN WIRE | I12 | 38 | INSTRUMENT PANEL WIRE
E5 | | | I13 | 38 | COWL NO. 3 WIRE
E9 | | | I14 | |
E11 | 32 | ENGINE WIRE | I15 | 38 | INSTRUMENT PANEL WIRE
E20 | 34 | ENGINE ROOM MAIN WIRE | I19 | |
A 1 BLACK | A 2 BLACK (2JZ-GTE) A 3 ⓧ BLACK (2JZ-GE) A 3 ⓧ GRAY | A 4 GRAY
A12 ⓒ ORANGE | A13 ⓓ ORANGE | A14 ⓓ ORANGE
A16 | A16 BLACK | A17 GRAY | A24 | A25 | A26
B 3 BLACK | B 4 ⓧ BLACK | B 5 ⓧ BLACK | C10 ⓓ BLUE
(2JZ-GTE) C12 ⓒ | (2JZ-GE) C12 ⓓ
237
