TL/Taillights, page 4

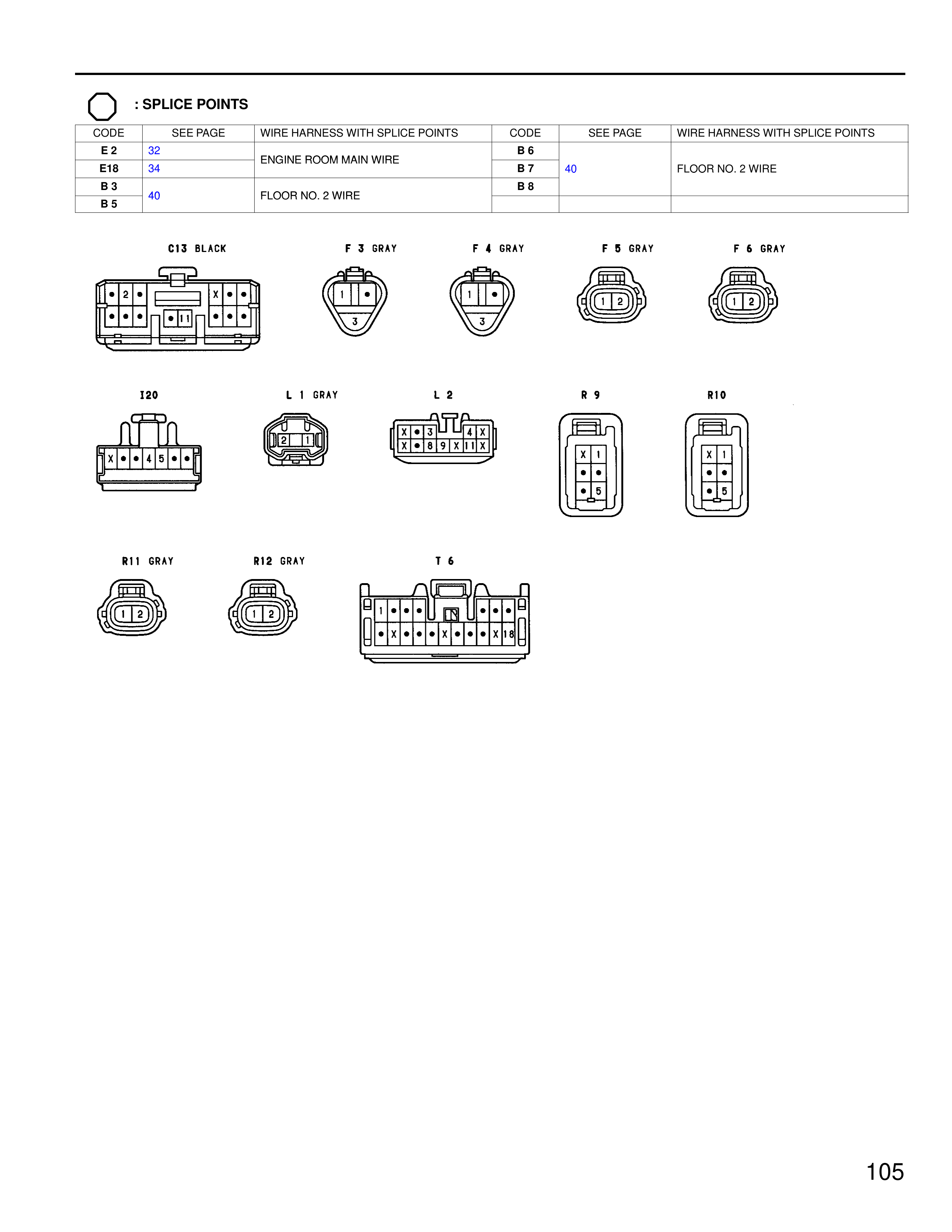

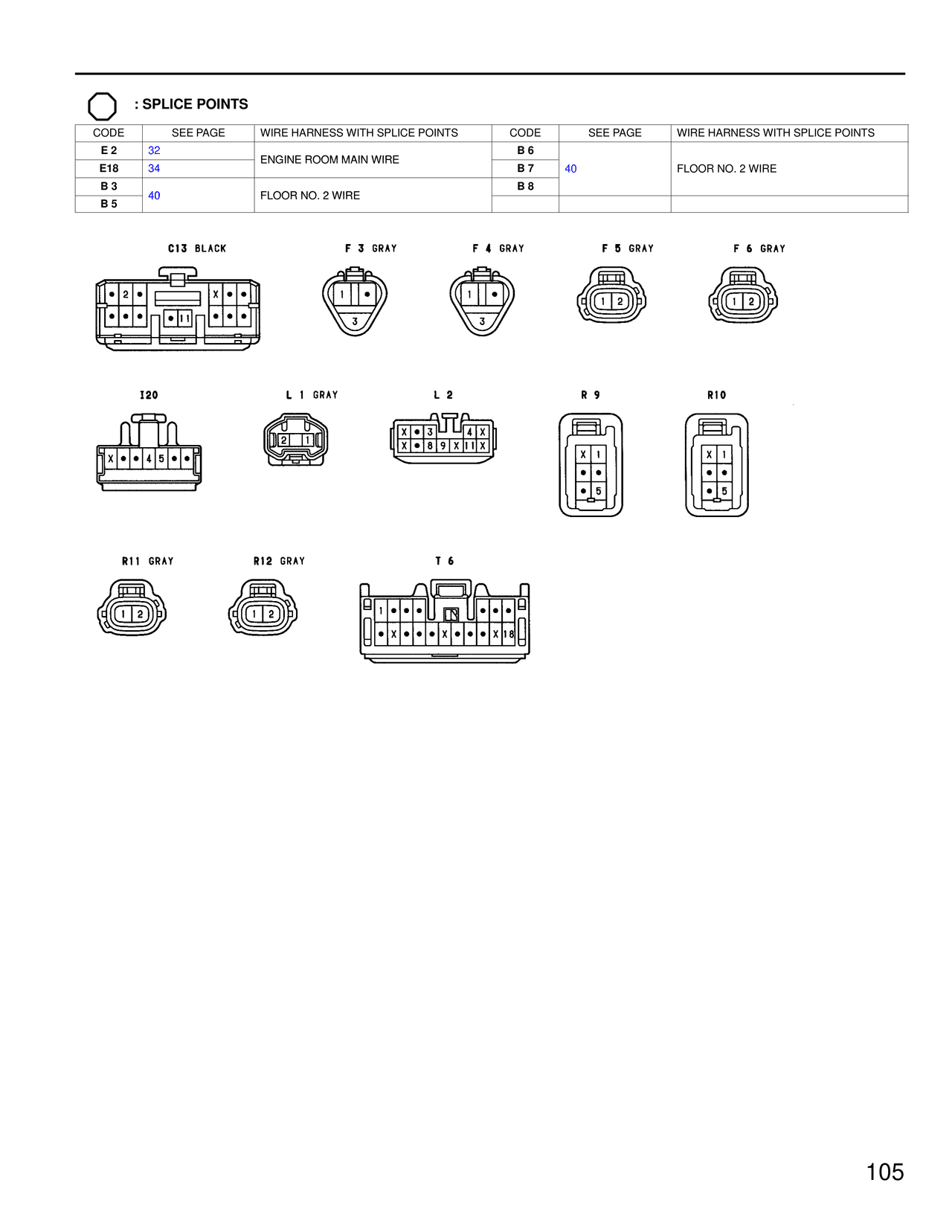

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E 2 | 32 | ENGINE ROOM MAIN WIRE | B 6 | |
E18 | 34 | | B 7 | 40 | FLOOR NO. 2 WIRE
B 3 | 40 | FLOOR NO. 2 WIRE | B 8 | |
B 5 | | | | |

C13 BLACK | F 3 GRAY | F 4 GRAY | F 8 GRAY | F 6 GRAY
[Connector diagrams showing pin layouts]

I20 | L 1 GRAY | L 2 | R 9 | R10
[Connector diagrams showing pin layouts]

R11 GRAY | R12 GRAY | T 6
[Connector diagrams showing pin layouts]

105
