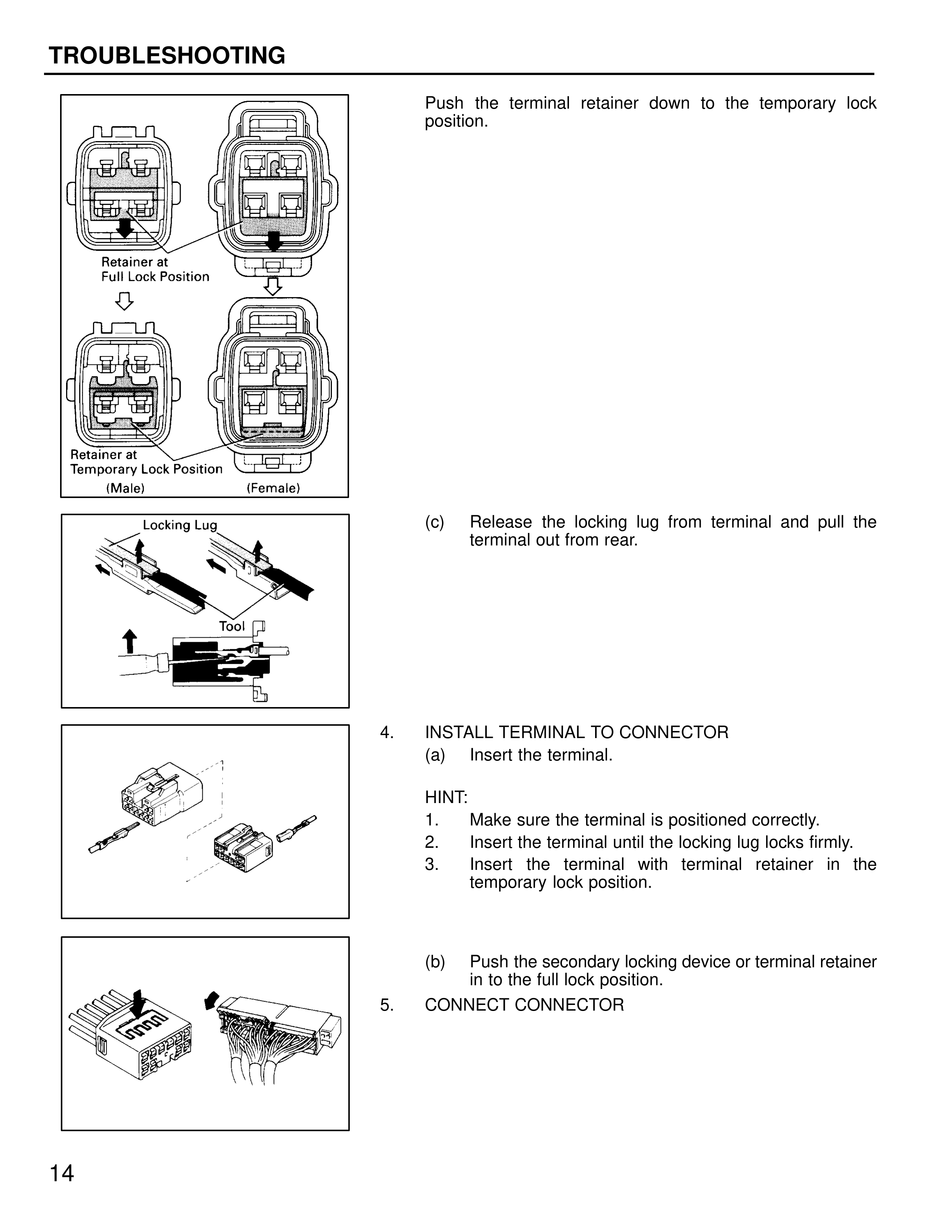

TROUBLESHOOTING
Retainer at Full Lock Position
Retainer at Temporary Lock Position
(Male) (Female)
Push the terminal retainer down to the temporary lock position.
Locking Lug
Tool
(c) Release the locking lug from terminal and pull the terminal out from rear.
4. INSTALL TERMINAL TO CONNECTOR
(a) Insert the terminal.
HINT:
1. Make sure the terminal is positioned correctly.
2. Insert the terminal until the locking lug locks firmly.
3. Insert the terminal with terminal retainer in the temporary lock position.
(b) Push the secondary locking device or terminal retainer in to the full lock position.
5. CONNECT CONNECTOR
14
