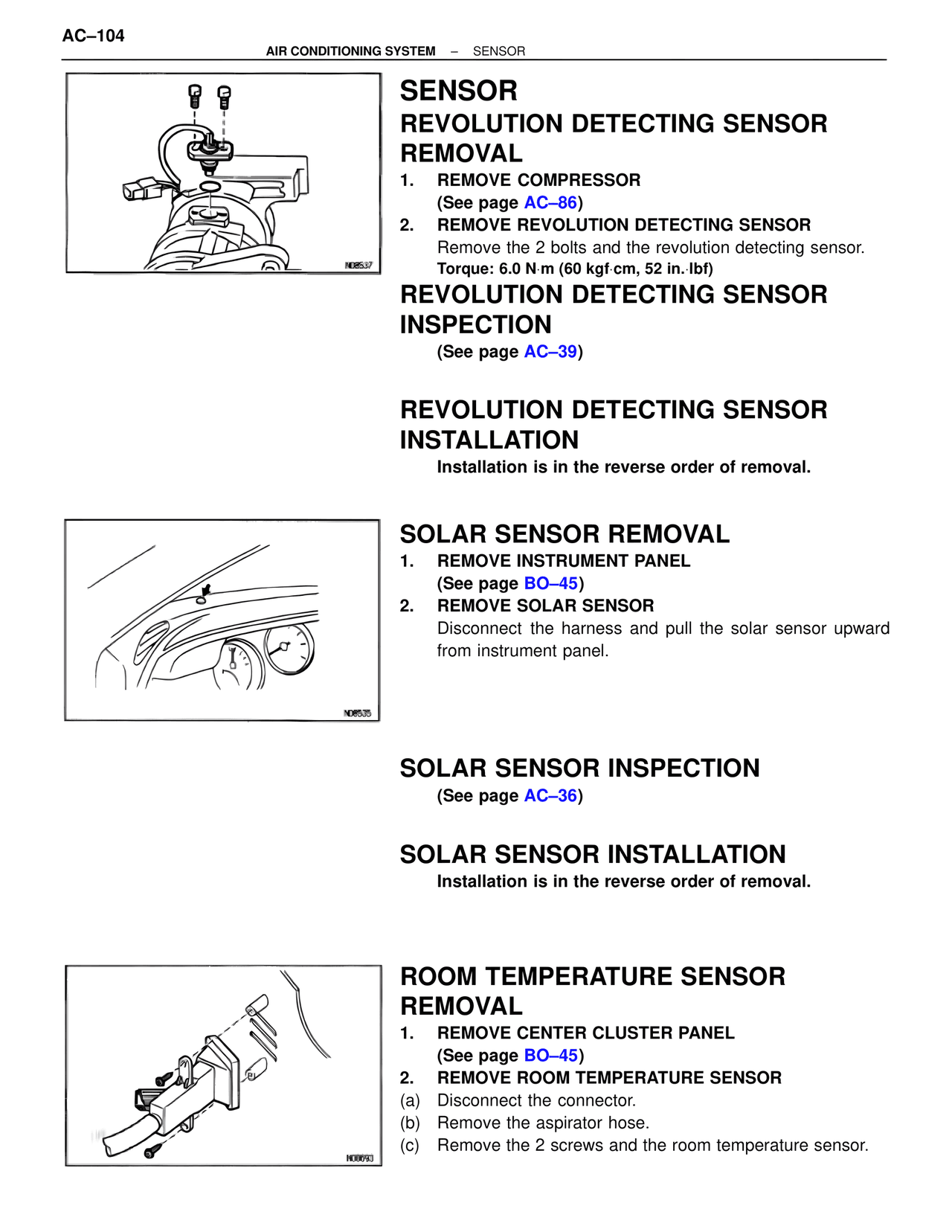

AC–104
AIR CONDITIONING SYSTEM – SENSOR
SENSOR
REVOLUTION DETECTING SENSOR
REMOVAL
1. REMOVE COMPRESSOR
(See page AC–86)
2. REMOVE REVOLUTION DETECTING SENSOR
Remove the 2 bolts and the revolution detecting sensor.
Torque: 6.0 N·m (60 kgf·cm, 52 in.·lbf)
REVOLUTION DETECTING SENSOR
INSPECTION
(See page AC–39)
REVOLUTION DETECTING SENSOR
INSTALLATION
Installation is in the reverse order of removal.
SOLAR SENSOR REMOVAL
1. REMOVE INSTRUMENT PANEL
(See page BO–45)
2. REMOVE SOLAR SENSOR
Disconnect the harness and pull the solar sensor upward
from instrument panel.
SOLAR SENSOR INSPECTION
(See page AC–36)
SOLAR SENSOR INSTALLATION
Installation is in the reverse order of removal.
ROOM TEMPERATURE SENSOR
REMOVAL
1. REMOVE CENTER CLUSTER PANEL
(See page BO–45)
2. REMOVE ROOM TEMPERATURE SENSOR
(a) Disconnect the connector.
(b) Remove the aspirator hose.
(c) Remove the 2 screws and the room temperature sensor.
