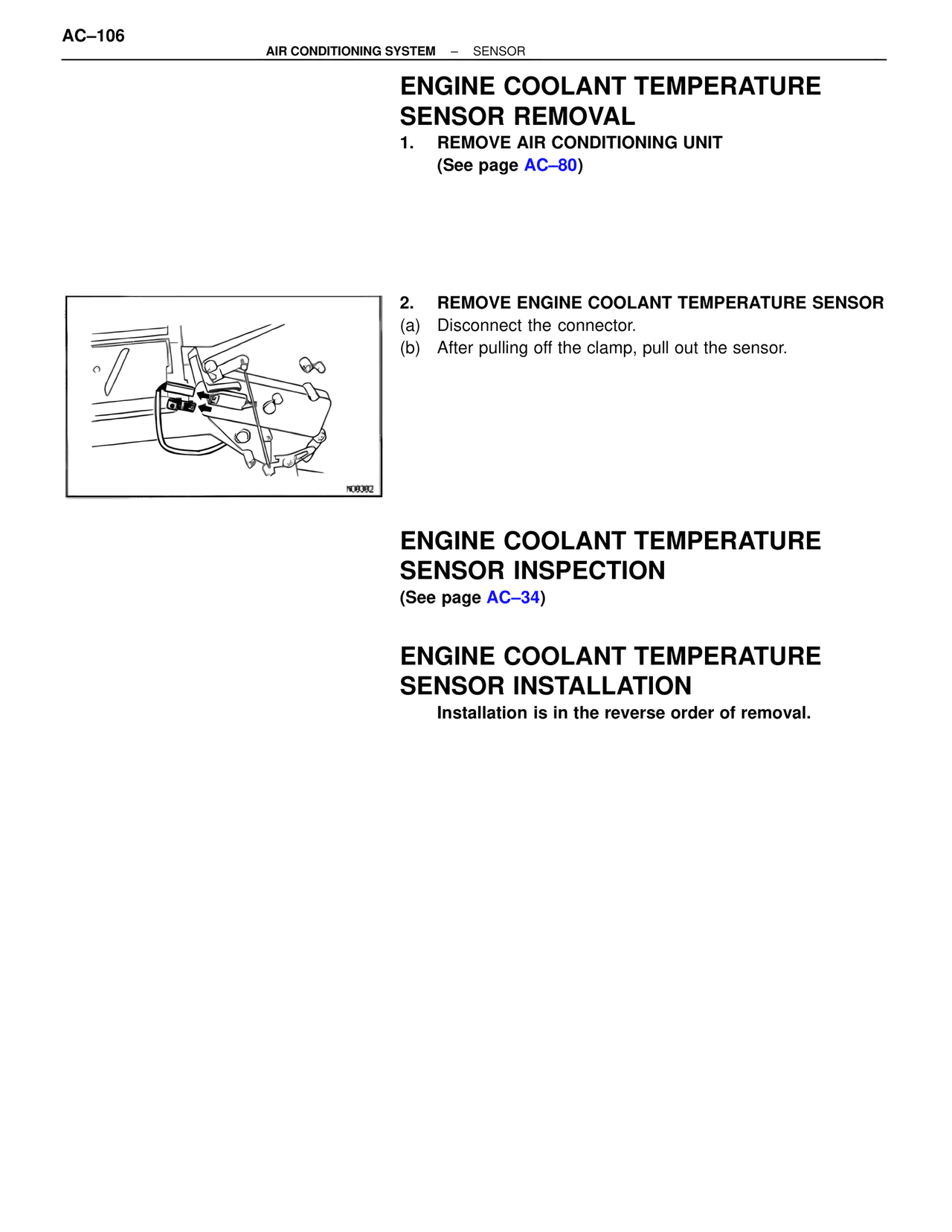

AC–106 AIR CONDITIONING SYSTEM – SENSOR ENGINE COOLANT TEMPERATURE SENSOR REMOVAL 1. REMOVE AIR CONDITIONING UNIT (See page AC–80) 2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (a) Disconnect the connector. (b) After pulling off the clamp, pull out the sensor. N08382 ENGINE COOLANT TEMPERATURE SENSOR INSPECTION (See page AC–34) ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION Installation is in the reverse order of removal.
