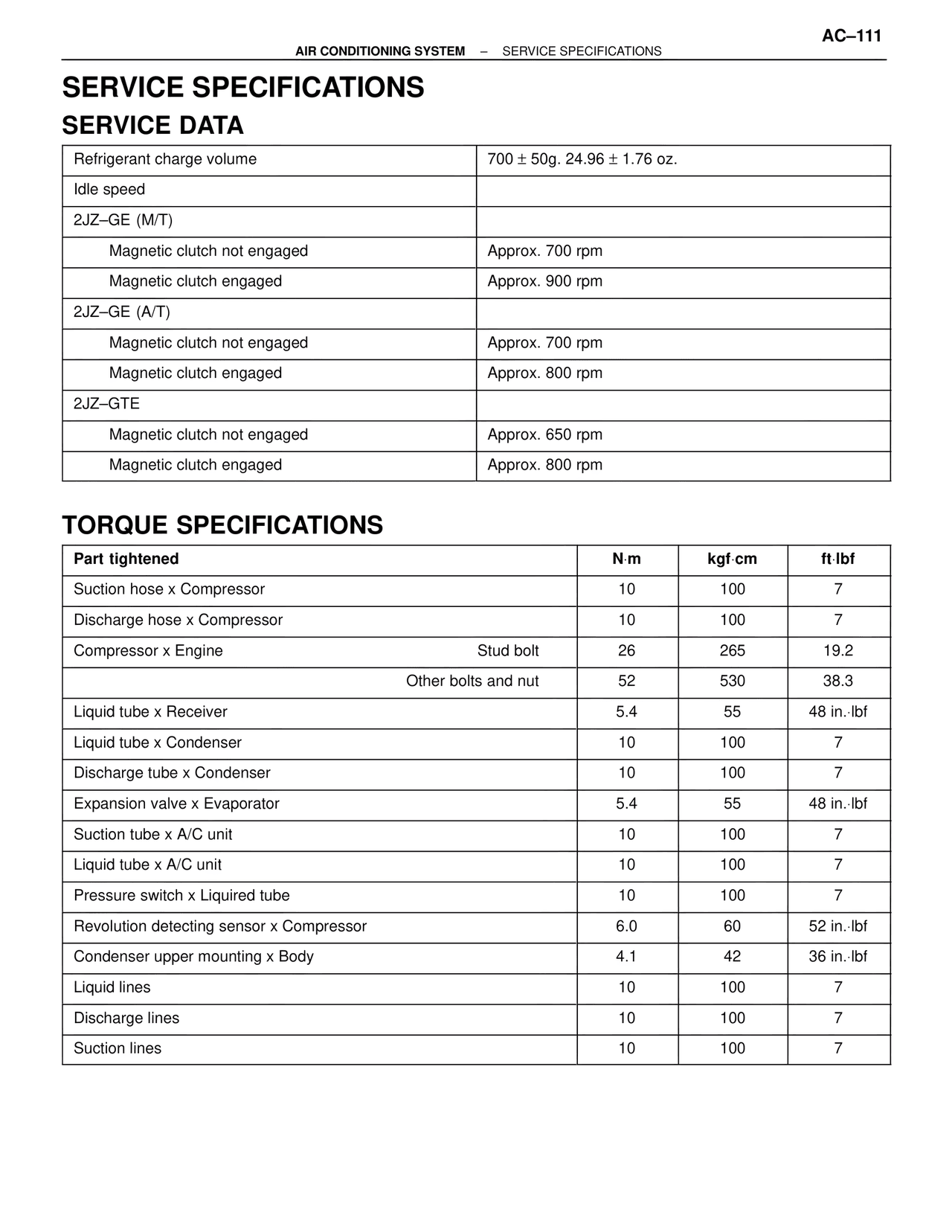

SERVICE SPECIFICATIONS
SERVICE DATA
Refrigerant charge volume 700 ± 50g. 24.96 ± 1.76 oz.
Idle speed
2JZ–GE (M/T)
Magnetic clutch not engaged Approx. 700 rpm
Magnetic clutch engaged Approx. 900 rpm
2JZ–GE (A/T)
Magnetic clutch not engaged Approx. 700 rpm
Magnetic clutch engaged Approx. 800 rpm
2JZ–GTE
Magnetic clutch not engaged Approx. 650 rpm
Magnetic clutch engaged Approx. 800 rpm
TORQUE SPECIFICATIONS
Part tightened N·m kgf·cm ft·lbf
Suction hose x Compressor 10 100 7
Discharge hose x Compressor 10 100 7
Compressor x Engine Stud bolt 26 265 19.2
Other bolts and nut 52 530 38.3
Liquid tube x Receiver 5.4 55 48 in.·lbf
Liquid tube x Condenser 10 100 7
Discharge tube x Condenser 10 100 7
Expansion valve x Evaporator 5.4 55 48 in.·lbf
Suction tube x A/C unit 10 100 7
Liquid tube x A/C unit 10 100 7
Pressure switch x Liquired tube 10 100 7
Revolution detecting sensor x Compressor 6.0 60 52 in.·lbf
Condenser upper mounting x Body 4.1 42 36 in.·lbf
Liquid lines 10 100 7
Discharge lines 10 100 7
Suction lines 10 100 7
