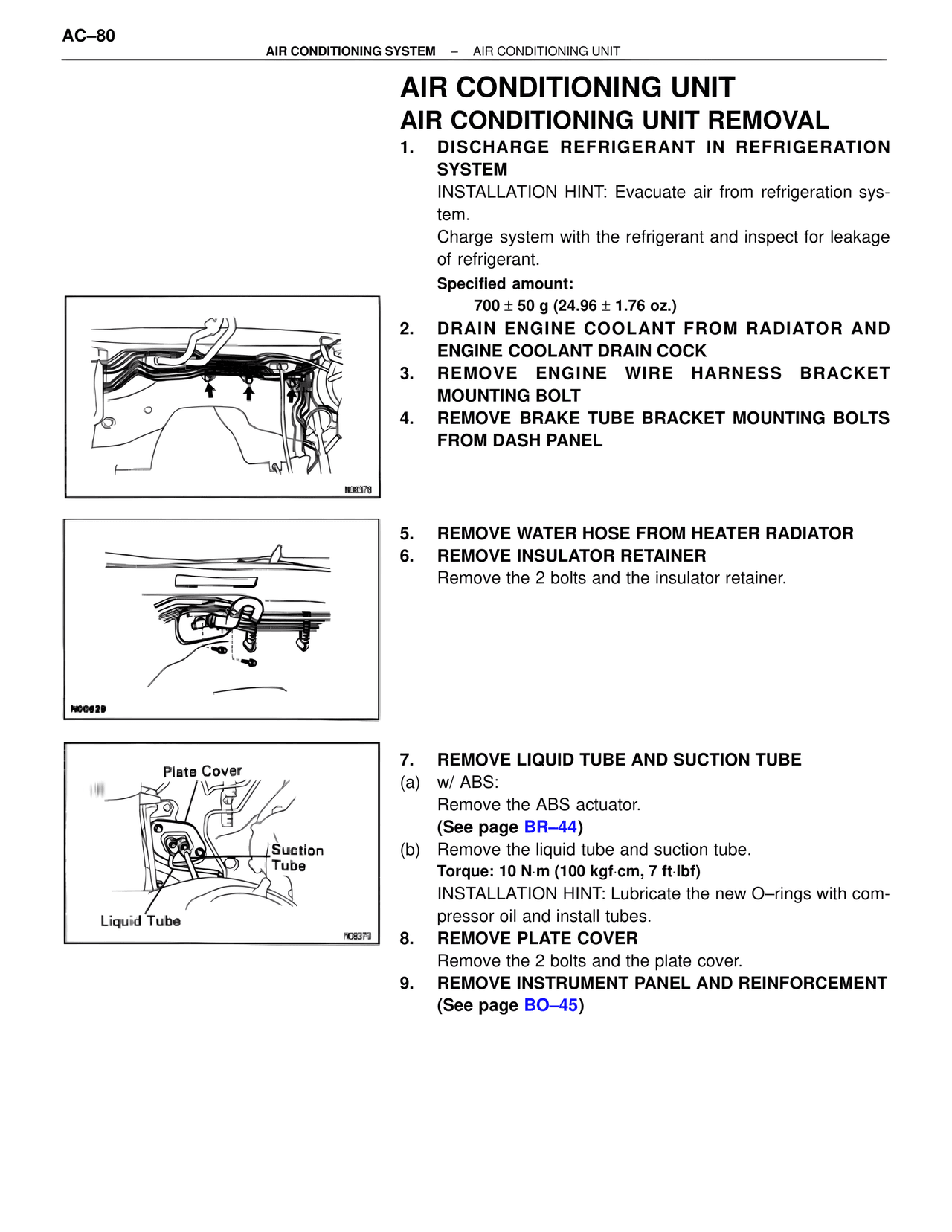

AIR CONDITIONING SYSTEM – AIR CONDITIONING UNIT

AIR CONDITIONING UNIT
AIR CONDITIONING UNIT REMOVAL

1. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM
INSTALLATION HINT: Evacuate air from refrigeration system.
Charge system with the refrigerant and inspect for leakage of refrigerant.
Specified amount:
700 ± 50 g (24.96 ± 1.76 oz.)

2. DRAIN ENGINE COOLANT FROM RADIATOR AND ENGINE COOLANT DRAIN COCK
3. REMOVE ENGINE WIRE HARNESS BRACKET MOUNTING BOLT
4. REMOVE BRAKE TUBE BRACKET MOUNTING BOLTS FROM DASH PANEL

N08378

5. REMOVE WATER HOSE FROM HEATER RADIATOR
6. REMOVE INSULATOR RETAINER
Remove the 2 bolts and the insulator retainer.

N00628

Plate Cover
Suction Tube
Liquid Tube

N08379

7. REMOVE LIQUID TUBE AND SUCTION TUBE
(a) w/ ABS:
Remove the ABS actuator.
(See page BR–44)
(b) Remove the liquid tube and suction tube.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
INSTALLATION HINT: Lubricate the new O–rings with compressor oil and install tubes.
8. REMOVE PLATE COVER
Remove the 2 bolts and the plate cover.
9. REMOVE INSTRUMENT PANEL AND REINFORCEMENT
(See page BO–45)
