AC–91

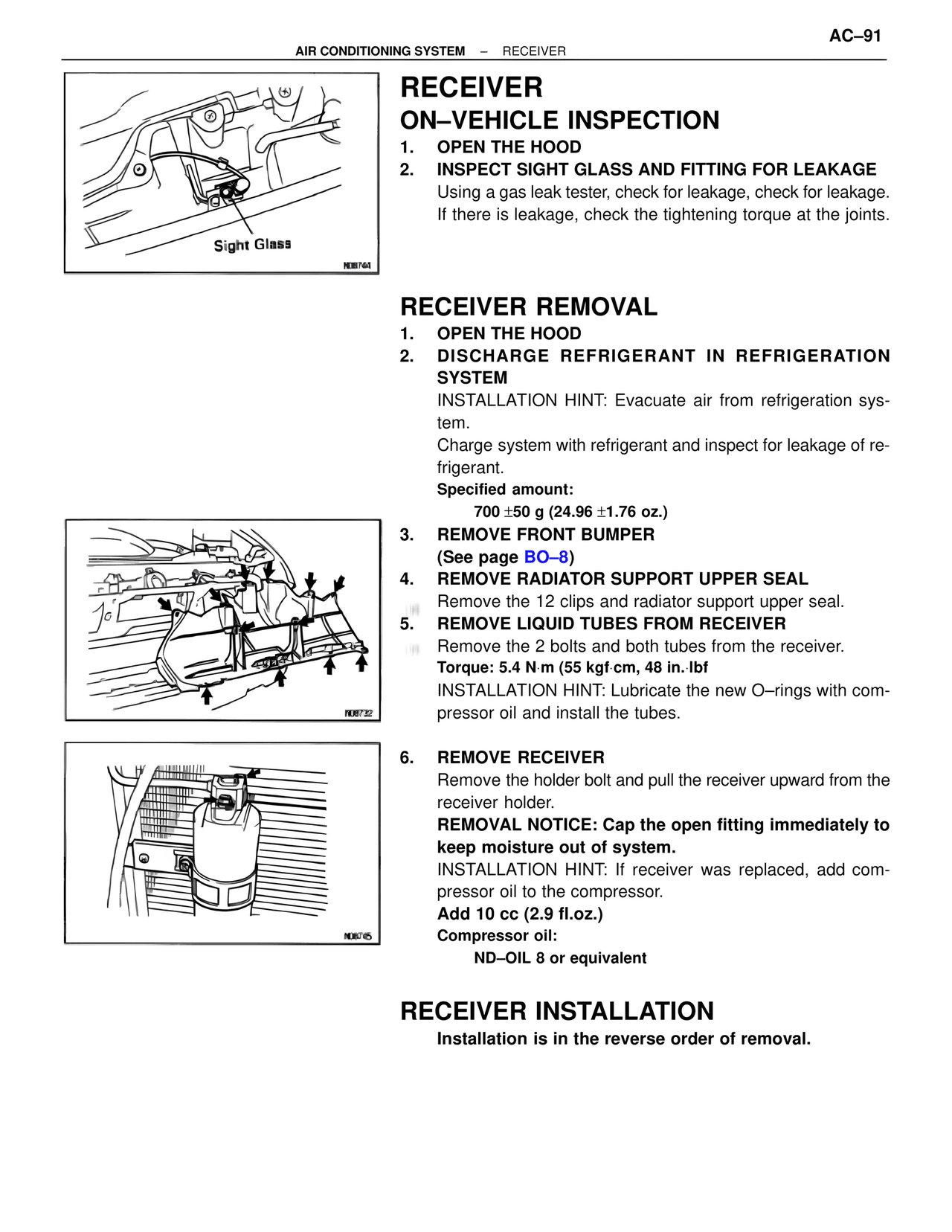

AIR CONDITIONING SYSTEM – RECEIVER

RECEIVER
ON–VEHICLE INSPECTION
1. OPEN THE HOOD
2. INSPECT SIGHT GLASS AND FITTING FOR LEAKAGE
Using a gas leak tester, check for leakage, check for leakage.
If there is leakage, check the tightening torque at the joints.

Sight Glass

N08744

RECEIVER REMOVAL
1. OPEN THE HOOD
2. DISCHARGE REFRIGERANT IN REFRIGERATION
SYSTEM
INSTALLATION HINT: Evacuate air from refrigeration sys-
tem.
Charge system with refrigerant and inspect for leakage of re-
frigerant.
Specified amount:
700 ±50 g (24.96 ±1.76 oz.)
3. REMOVE FRONT BUMPER
(See page BO–8)
4. REMOVE RADIATOR SUPPORT UPPER SEAL
Remove the 12 clips and radiator support upper seal.
5. REMOVE LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and both tubes from the receiver.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf
INSTALLATION HINT: Lubricate the new O–rings with com-
pressor oil and install the tubes.

N08732

6. REMOVE RECEIVER
Remove the holder bolt and pull the receiver upward from the
receiver holder.
REMOVAL NOTICE: Cap the open fitting immediately to
keep moisture out of system.
INSTALLATION HINT: If receiver was replaced, add com-
pressor oil to the compressor.
Add 10 cc (2.9 fl.oz.)
Compressor oil:
ND–OIL 8 or equivalent

N08745

RECEIVER INSTALLATION
Installation is in the reverse order of removal.
