AT340E (2JZ-GE) AUTOMATIC TRANSMISSION — OPERATION — MK4 Supra A340 Automatic Trans (GE), page 4
100%

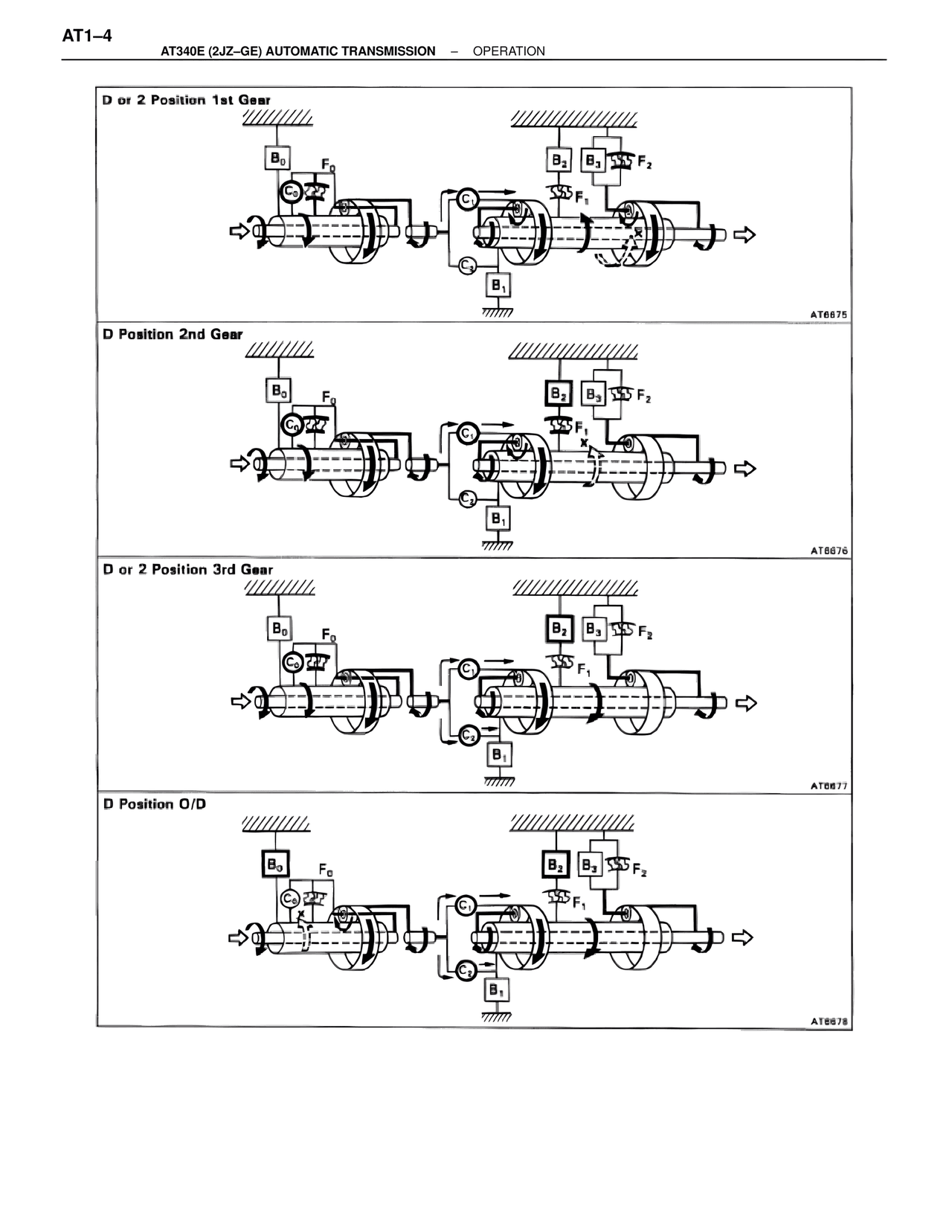

AT1–4 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – OPERATION D or 2 Position 1st Gear B₀ F₀ C₀ B₂ B₃ F₂ C₁ F₁ C₂ B₁ AT6675 D Position 2nd Gear B₀ F₀ C₀ B₂ B₃ F₂ C₁ F₁ C₂ B₁ AT6676 D or 2 Position 3rd Gear B₀ F₀ C₀ B₂ B₃ F₂ C₁ F₁ C₂ B₁ AT6677 D Position O/D B₀ F₀ C₀ B₂ B₃ F₂ C₁ F₁ C₂ B₁ AT6678
