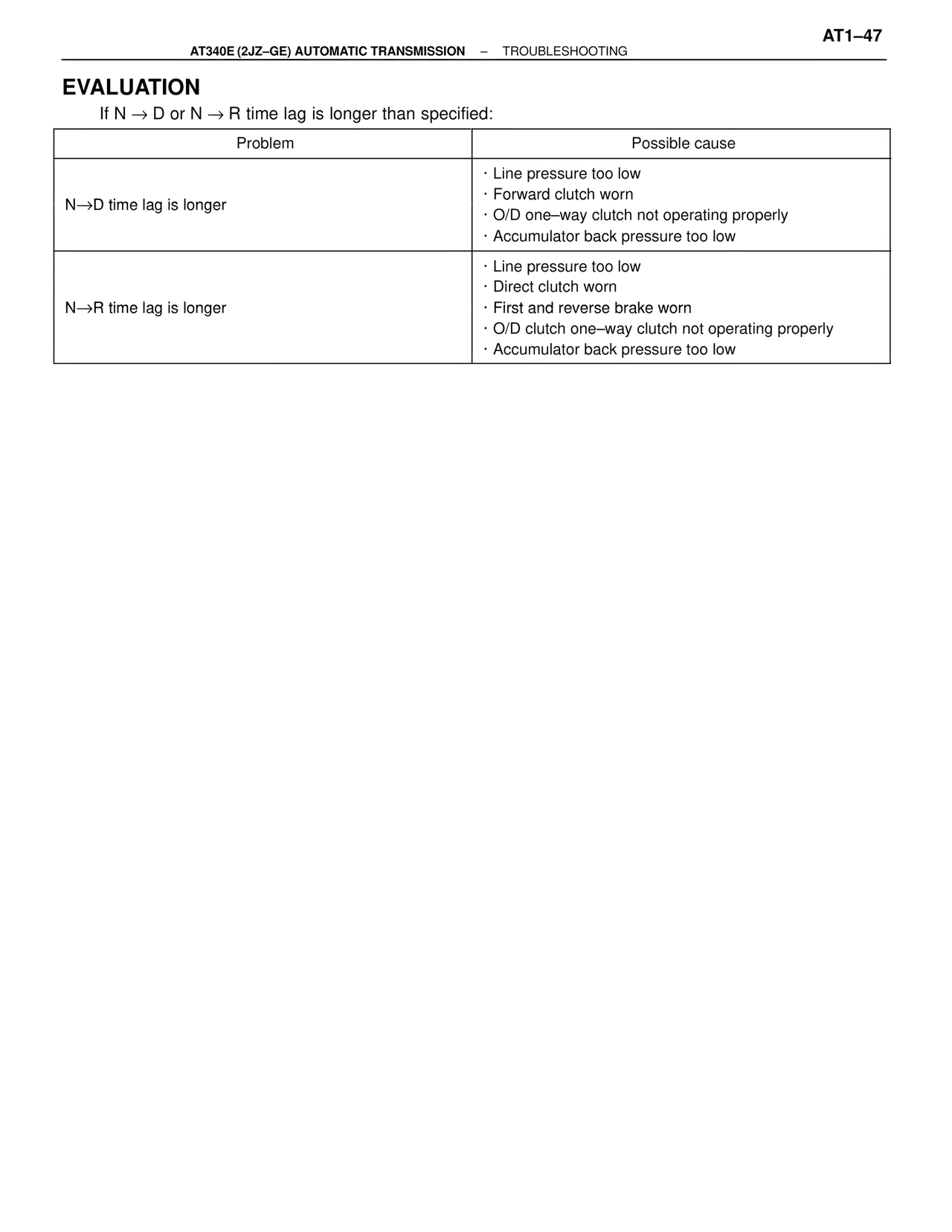

EVALUATION — MK4 Supra A340 Automatic Trans (GE), page 47
100%
EVALUATION If N → D or N → R time lag is longer than specified: Problem | Possible cause N→D time lag is longer · Line pressure too low · Forward clutch worn · O/D one–way clutch not operating properly · Accumulator back pressure too low N→R time lag is longer · Line pressure too low · Direct clutch worn · First and reverse brake worn · O/D clutch one–way clutch not operating properly · Accumulator back pressure too low
