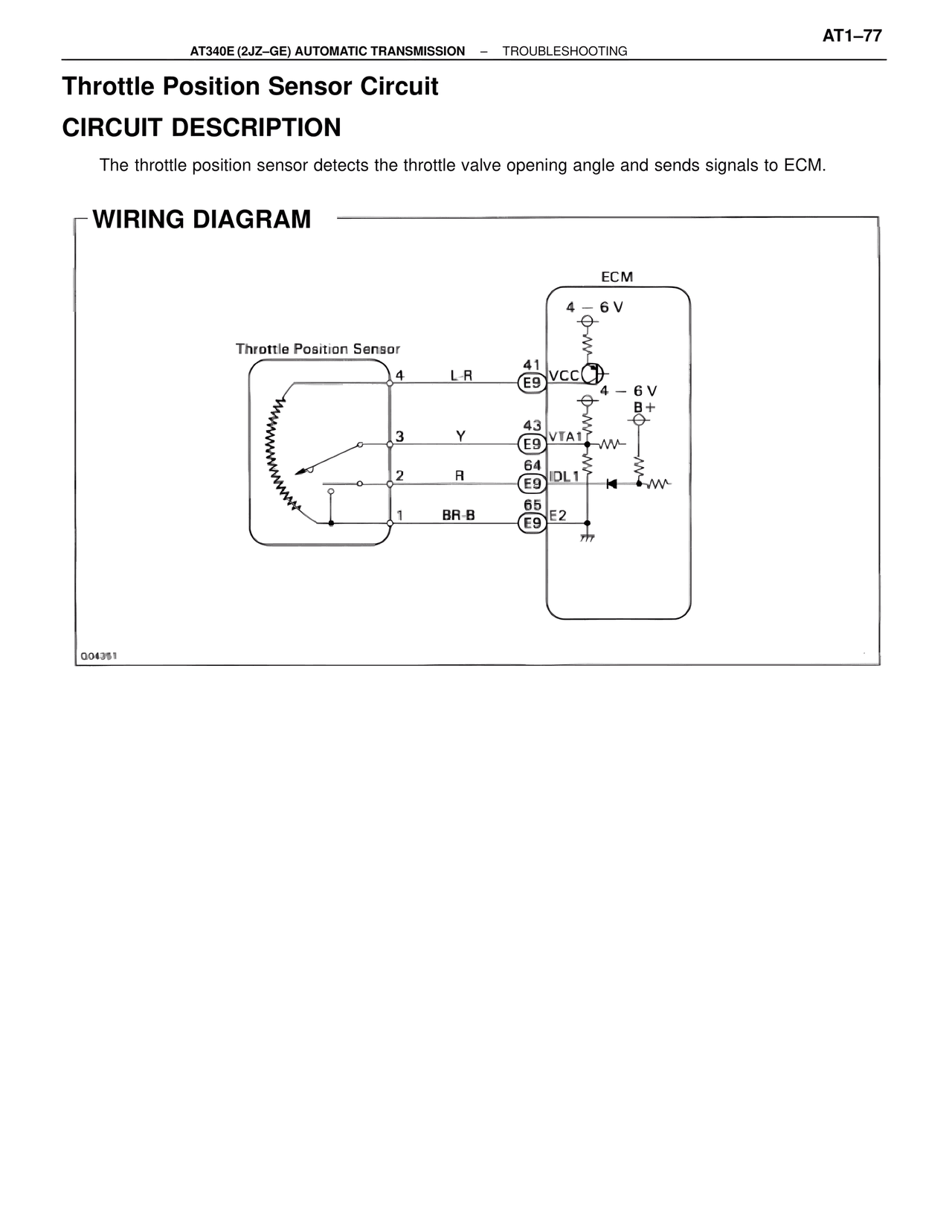

AT1–77 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING Throttle Position Sensor Circuit CIRCUIT DESCRIPTION The throttle position sensor detects the throttle valve opening angle and sends signals to ECM. WIRING DIAGRAM ECM 4 – 6 V Throttle Position Sensor 4 L-R 41 (E9) VCC 4 – 6 V B+ 3 Y 43 (E9) VTA1 2 R 64 (E9) IDL1 1 BR-B 65 (E9) E2 G04351
