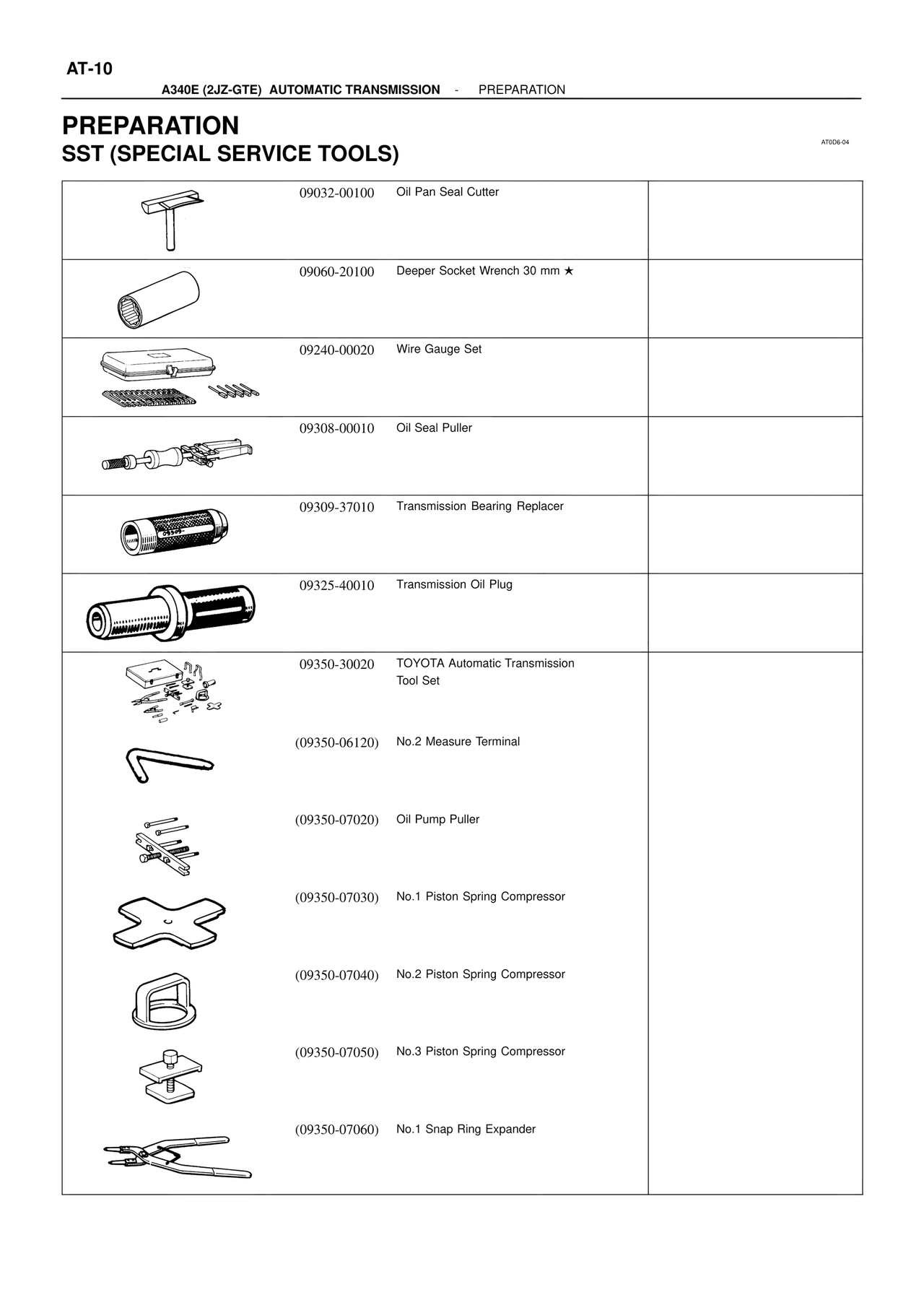

ATR/ATM Unit Repair — Preparation SST (Special Service Tools), page 10

AT-10

A340E (2JZ-GTE)  AUTOMATIC TRANSMISSION  -  PREPARATION

PREPARATION
SST (SPECIAL SERVICE TOOLS)

AT0D6-04

09032-00100    Oil Pan Seal Cutter

09060-20100    Deeper Socket Wrench 30 mm ★

09240-00020    Wire Gauge Set

09308-00010    Oil Seal Puller

09309-37010    Transmission Bearing Replacer

09325-40010    Transmission Oil Plug

09350-30020    TOYOTA Automatic Transmission
               Tool Set

(09350-06120)  No.2 Measure Terminal

(09350-07020)  Oil Pump Puller

(09350-07030)  No.1 Piston Spring Compressor

(09350-07040)  No.2 Piston Spring Compressor

(09350-07050)  No.3 Piston Spring Compressor

(09350-07060)  No.1 Snap Ring Expander
