AT-19
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL

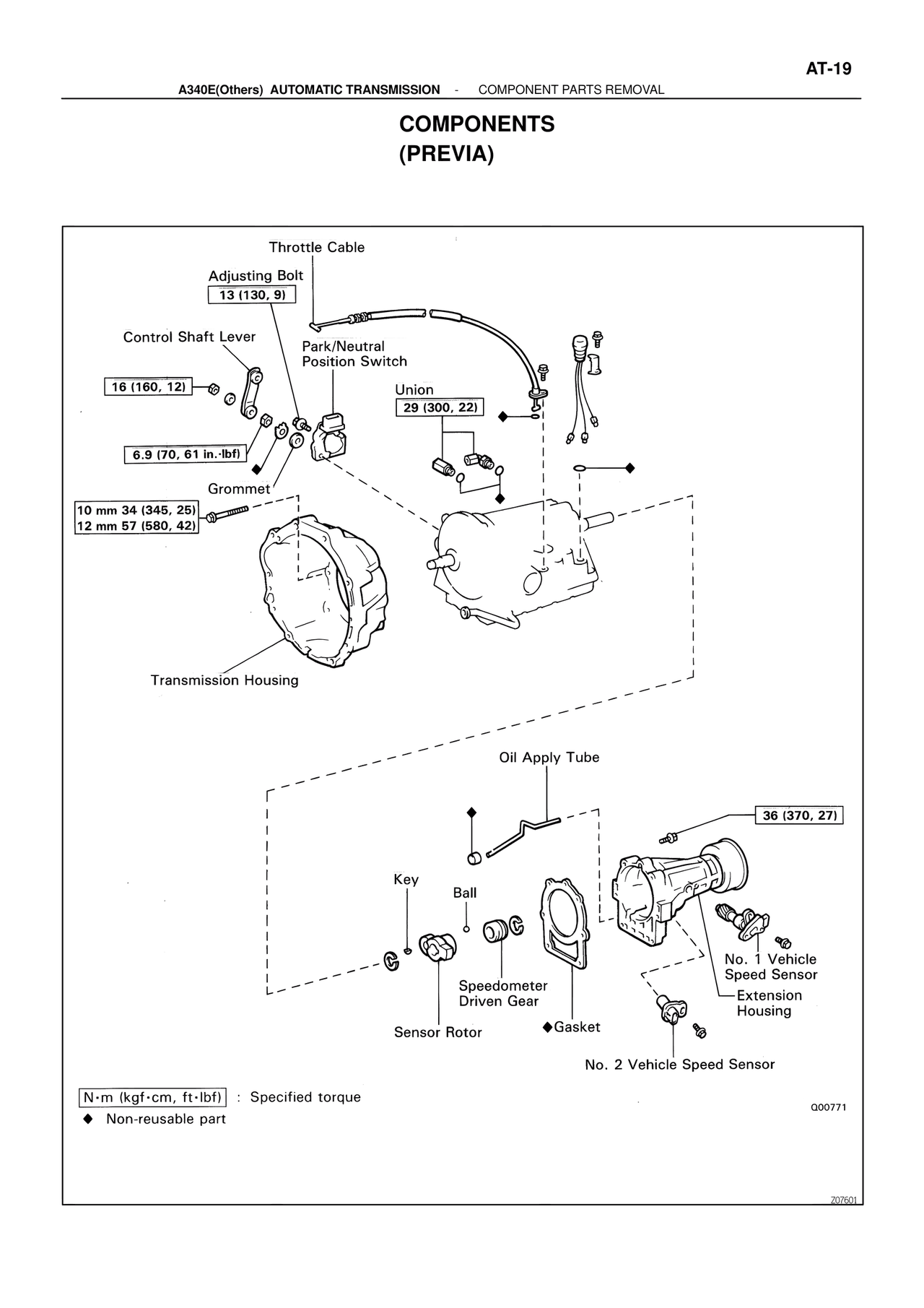

COMPONENTS
(PREVIA)
Throttle Cable
Adjusting Bolt
13 (130, 9)
Control Shaft Lever
Park/Neutral
Position Switch
16 (160, 12)
Union
29 (300, 22)
6.9 (70, 61 in.·lbf)
Grommet
10 mm 34 (345, 25)
12 mm 57 (580, 42)
Transmission Housing
Oil Apply Tube
36 (370, 27)
Key
Ball
No. 1 Vehicle
Speed Sensor
Speedometer
Driven Gear
Extension
Housing
Sensor Rotor
◆Gasket
No. 2 Vehicle Speed Sensor
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
Q00771
Z07501
