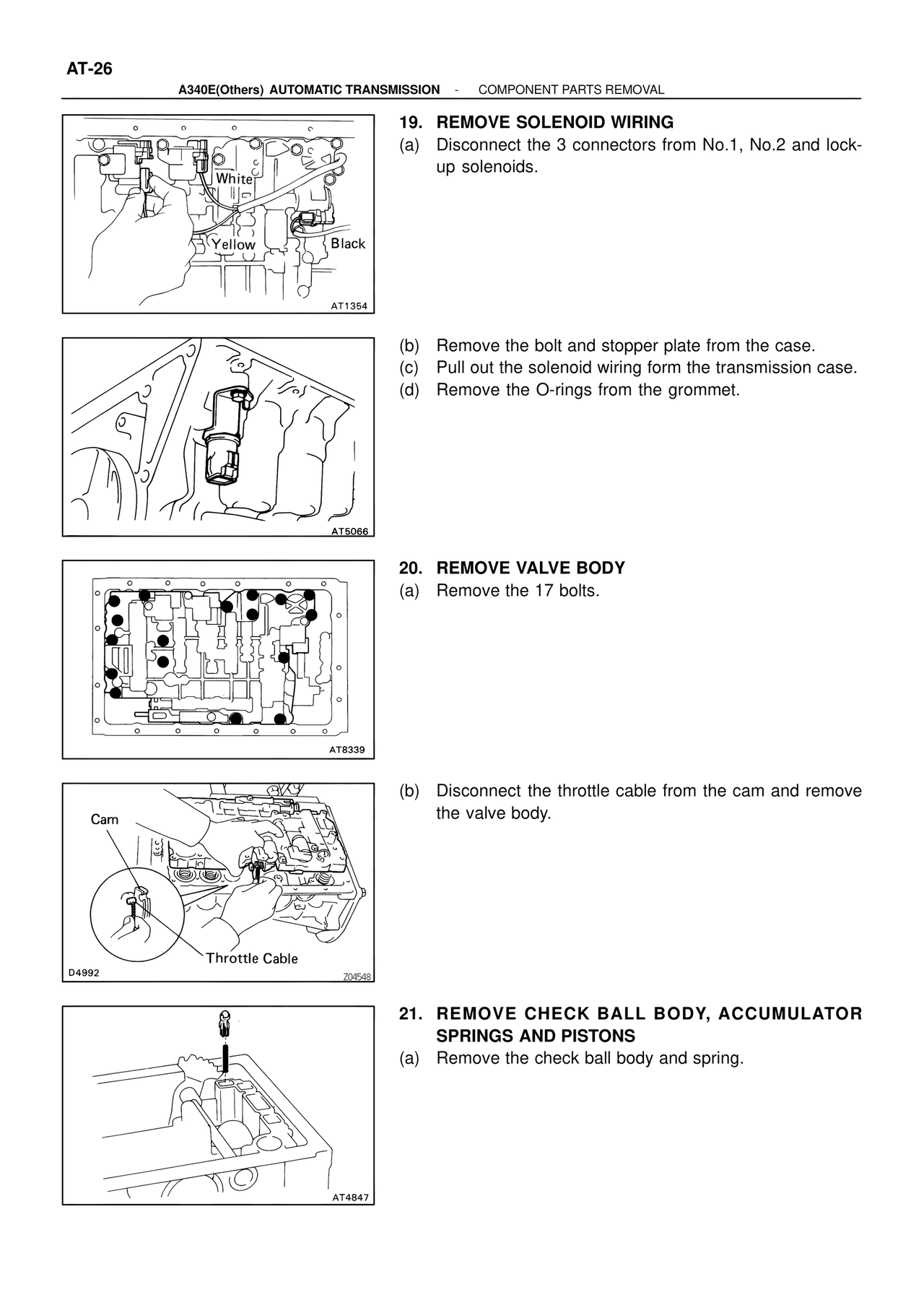

AT-26
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
White
Yellow
Black
AT1354
19. REMOVE SOLENOID WIRING
(a) Disconnect the 3 connectors from No.1, No.2 and lock-up solenoids.
AT5066
(b) Remove the bolt and stopper plate from the case.
(c) Pull out the solenoid wiring form the transmission case.
(d) Remove the O-rings from the grommet.
AT8339
20. REMOVE VALVE BODY
(a) Remove the 17 bolts.
Cam
Throttle Cable
D4992
204548
(b) Disconnect the throttle cable from the cam and remove the valve body.
AT4847
21. REMOVE CHECK BALL BODY, ACCUMULATOR SPRINGS AND PISTONS
(a) Remove the check ball body and spring.
