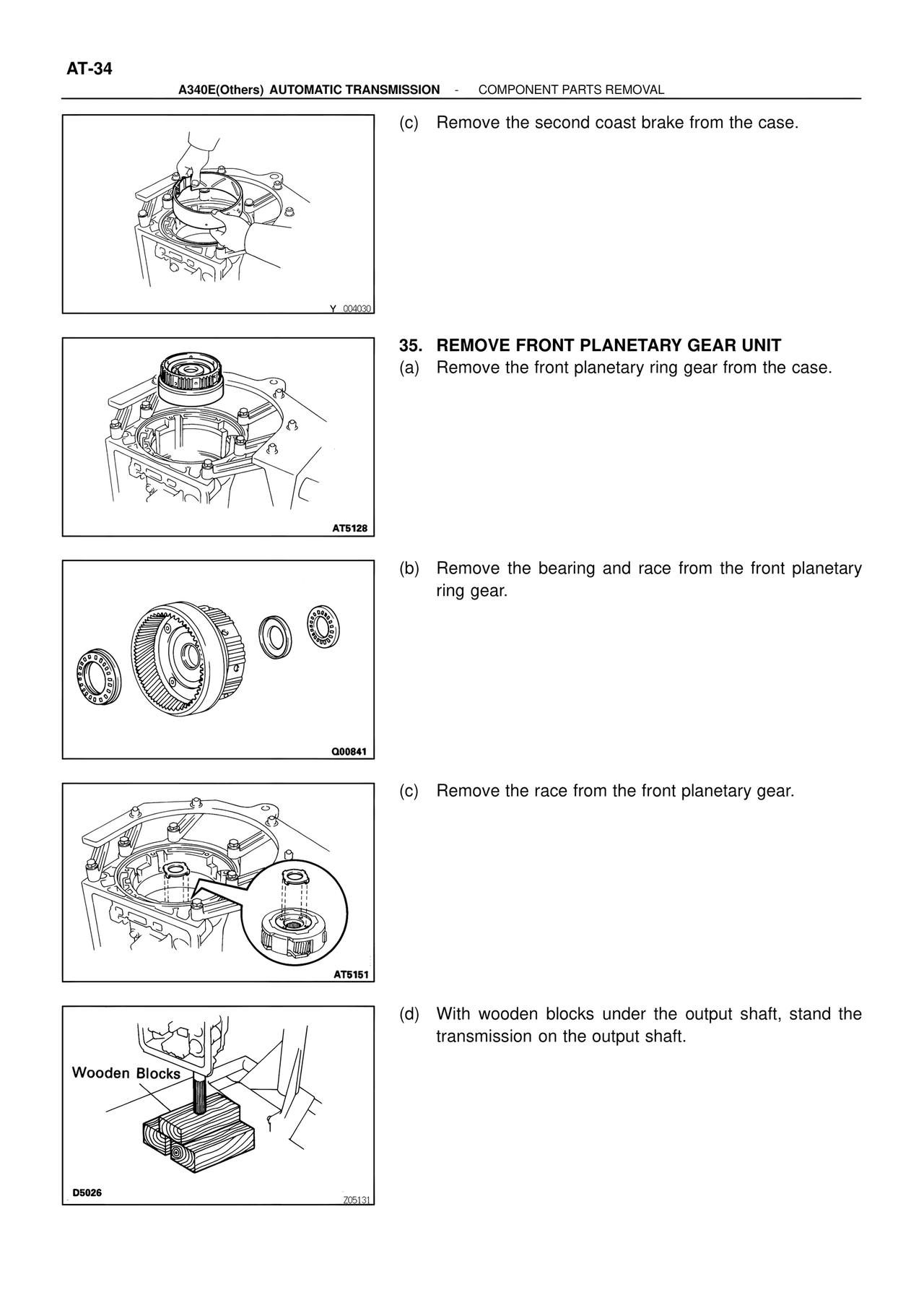

AT-34
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(c) Remove the second coast brake from the case.
Y_004039
35. REMOVE FRONT PLANETARY GEAR UNIT
(a) Remove the front planetary ring gear from the case.
AT5128
(b) Remove the bearing and race from the front planetary ring gear.
Q00841
(c) Remove the race from the front planetary gear.
AT5151
(d) With wooden blocks under the output shaft, stand the transmission on the output shaft.
Wooden Blocks
D5026
Z05131
