AT-36

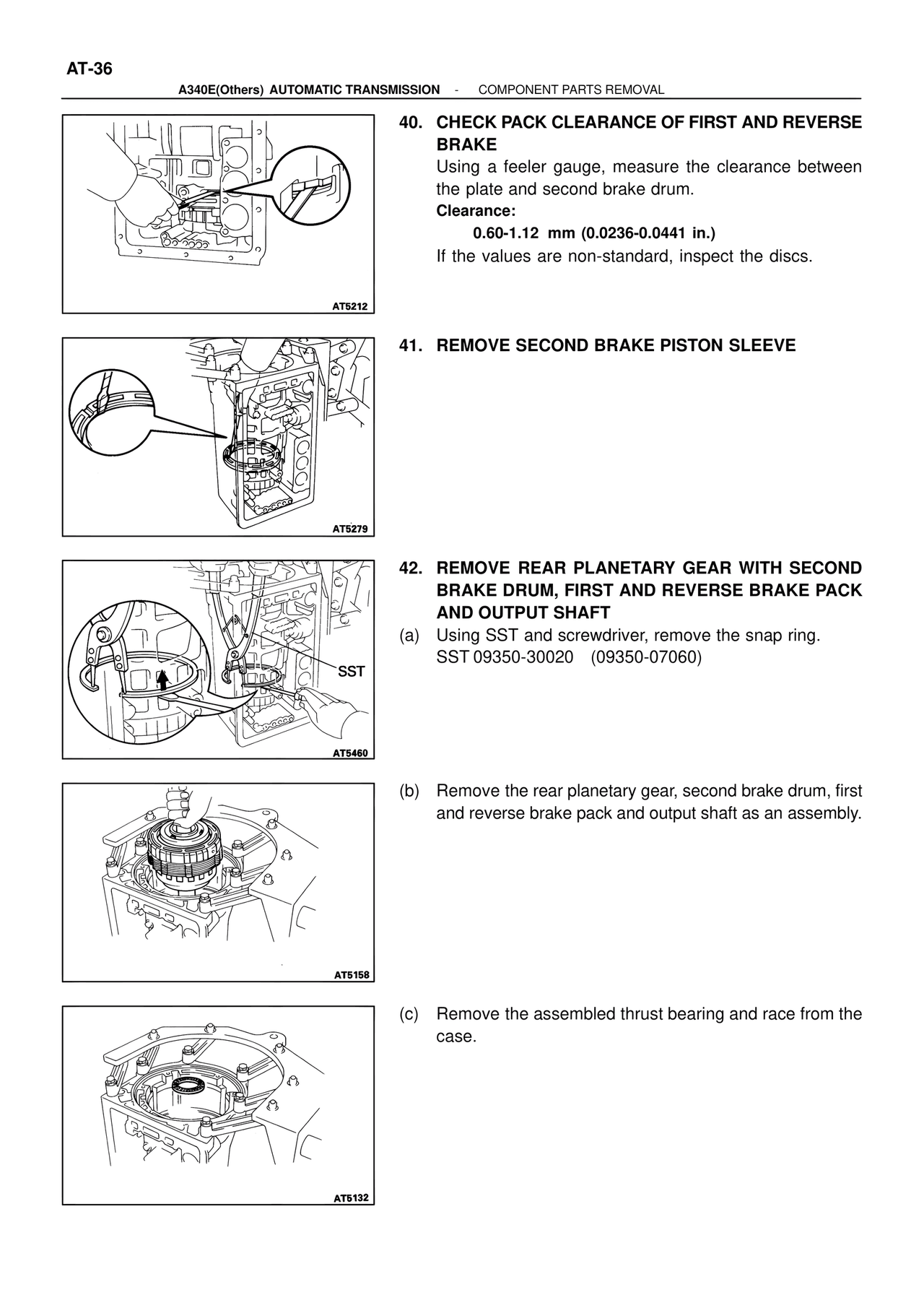

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
AT5212
40. CHECK PACK CLEARANCE OF FIRST AND REVERSE
BRAKE
Using a feeler gauge, measure the clearance between
the plate and second brake drum.
Clearance:
0.60-1.12 mm (0.0236-0.0441 in.)
If the values are non-standard, inspect the discs.
AT5279
41. REMOVE SECOND BRAKE PISTON SLEEVE
AT5460
42. REMOVE REAR PLANETARY GEAR WITH SECOND
BRAKE DRUM, FIRST AND REVERSE BRAKE PACK
AND OUTPUT SHAFT
(a) Using SST and screwdriver, remove the snap ring.
SST 09350-30020 (09350-07060)
SST
AT5158
(b) Remove the rear planetary gear, second brake drum, first
and reverse brake pack and output shaft as an assembly.
AT5132
(c) Remove the assembled thrust bearing and race from the
case.
