AT-39

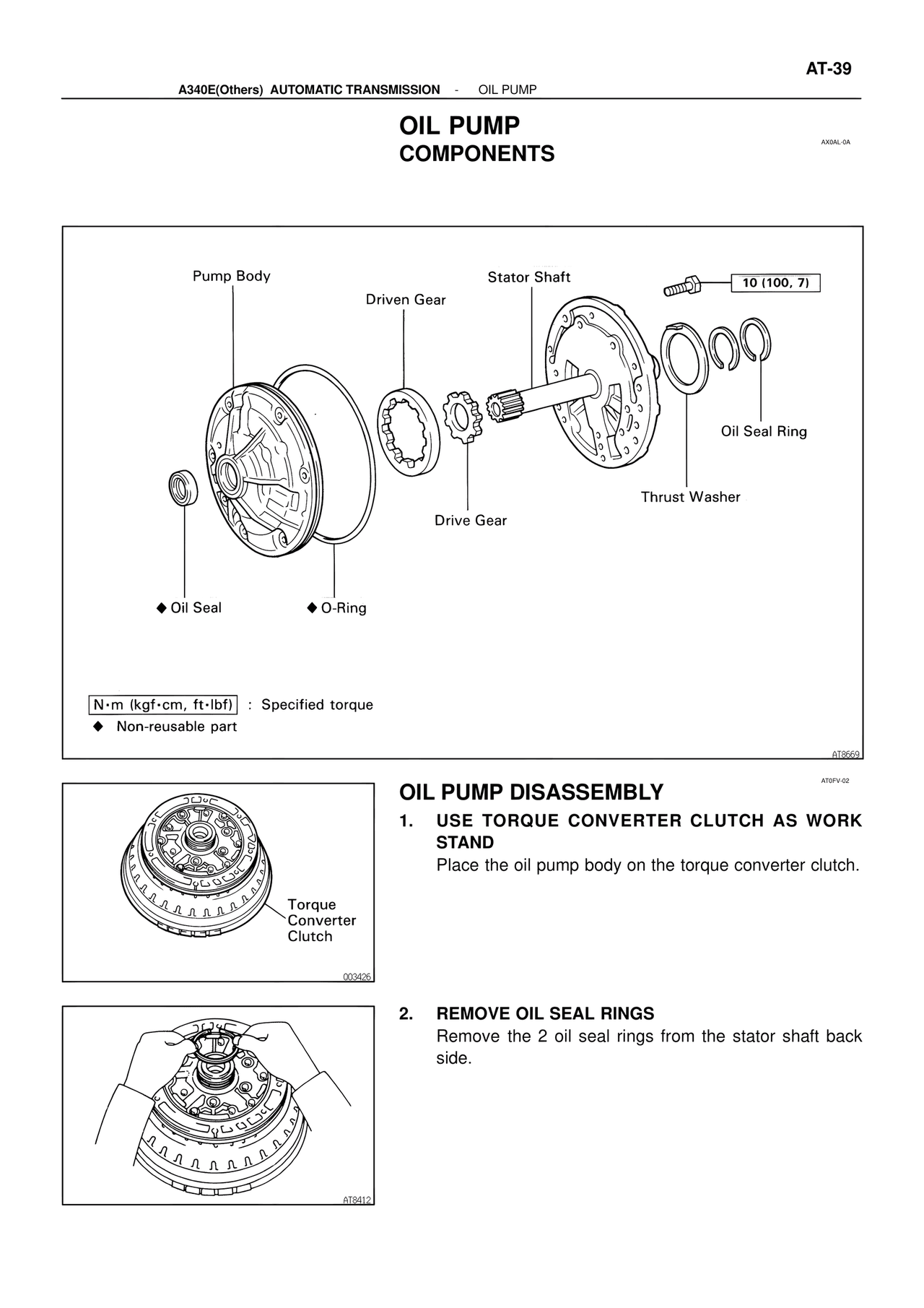

A340E(Others) AUTOMATIC TRANSMISSION - OIL PUMP
OIL PUMP
COMPONENTS
AXOAL-0A
Pump Body
Driven Gear
Stator Shaft
10 (100, 7)
Oil Seal Ring
Thrust Washer
Drive Gear
◆ Oil Seal
◆ O-Ring
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
AT8669
AT0FV-02
OIL PUMP DISASSEMBLY
1. USE TORQUE CONVERTER CLUTCH AS WORK STAND
Place the oil pump body on the torque converter clutch.
Torque Converter Clutch
003426
2. REMOVE OIL SEAL RINGS
Remove the 2 oil seal rings from the stator shaft back side.
AT8412
