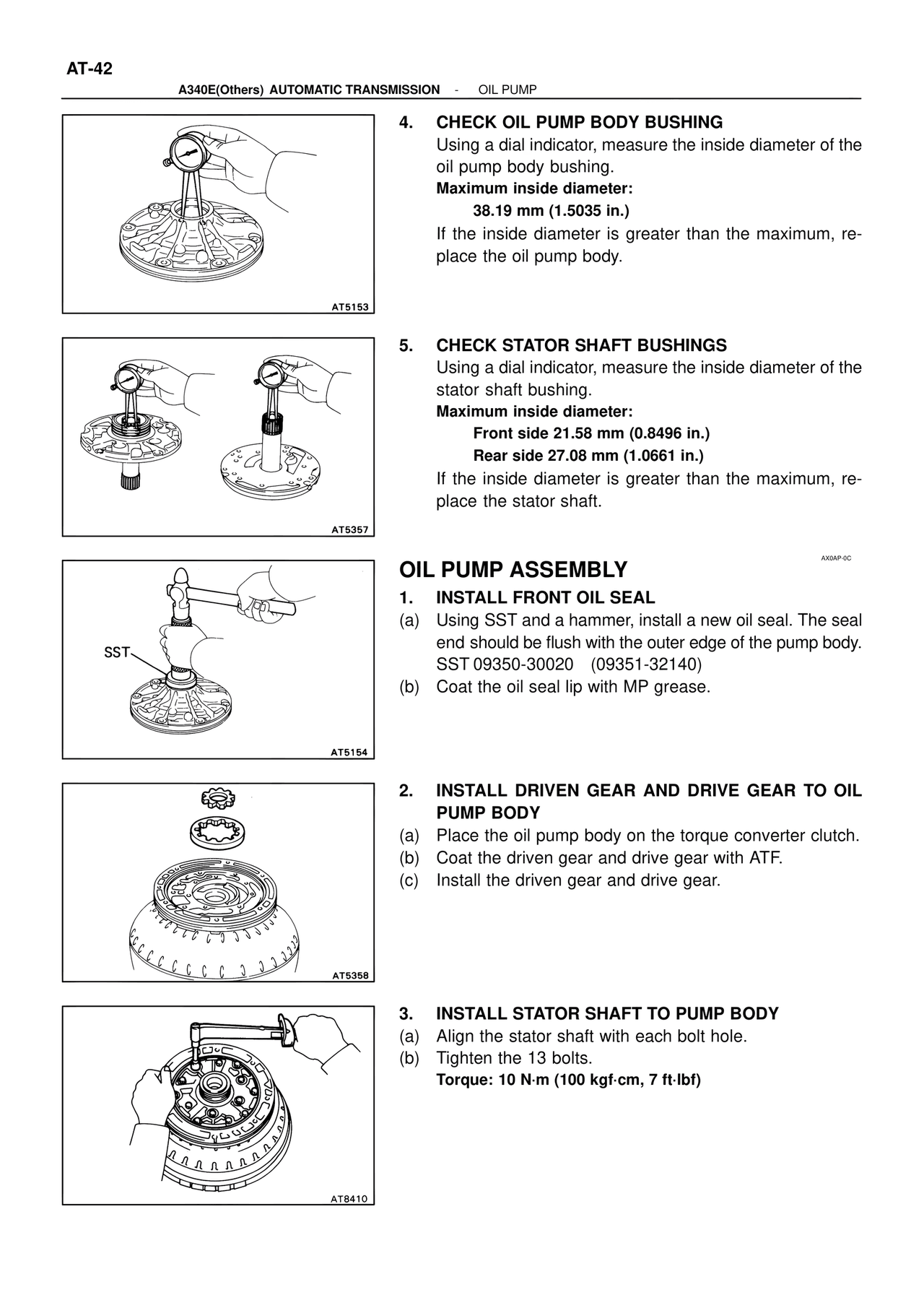

AT-42
A340E(Others) AUTOMATIC TRANSMISSION - OIL PUMP
4. CHECK OIL PUMP BODY BUSHING
Using a dial indicator, measure the inside diameter of the
oil pump body bushing.
Maximum inside diameter:
38.19 mm (1.5035 in.)
If the inside diameter is greater than the maximum, re-
place the oil pump body.
AT5153
5. CHECK STATOR SHAFT BUSHINGS
Using a dial indicator, measure the inside diameter of the
stator shaft bushing.
Maximum inside diameter:
Front side 21.58 mm (0.8496 in.)
Rear side 27.08 mm (1.0661 in.)
If the inside diameter is greater than the maximum, re-
place the stator shaft.
AT5357
OIL PUMP ASSEMBLY
AX0AP-0C
1. INSTALL FRONT OIL SEAL
(a) Using SST and a hammer, install a new oil seal. The seal
end should be flush with the outer edge of the pump body.
SST 09350-30020 (09351-32140)
(b) Coat the oil seal lip with MP grease.
SST
AT5154
2. INSTALL DRIVEN GEAR AND DRIVE GEAR TO OIL
PUMP BODY
(a) Place the oil pump body on the torque converter clutch.
(b) Coat the driven gear and drive gear with ATF.
(c) Install the driven gear and drive gear.
AT5358
3. INSTALL STATOR SHAFT TO PUMP BODY
(a) Align the stator shaft with each bolt hole.
(b) Tighten the 13 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
AT8410
